MBR2060CT - Surface Mount Schottky Barrie Rectifier

Product Overview

Part number	MBR2060CT
Manufacturer	XINWEI
File Size	753.84 KB
Description	Surface Mount Schottky Barrie Rectifier
Datasheet	MBR2060CT Datasheet
Note	This datasheet PDF includes multiple part numbers: MBR2060CT, MBR2020CT. Please refer to the document for exact specifications by model.

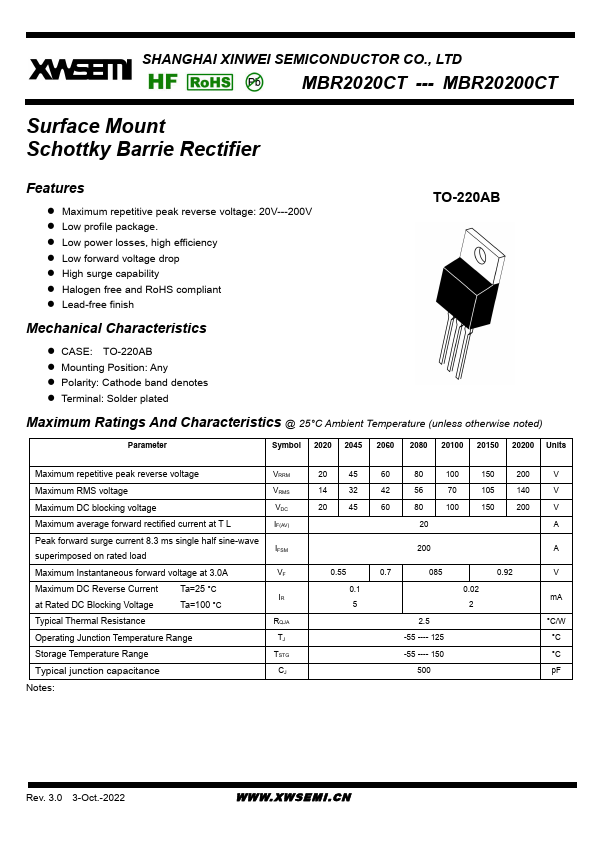

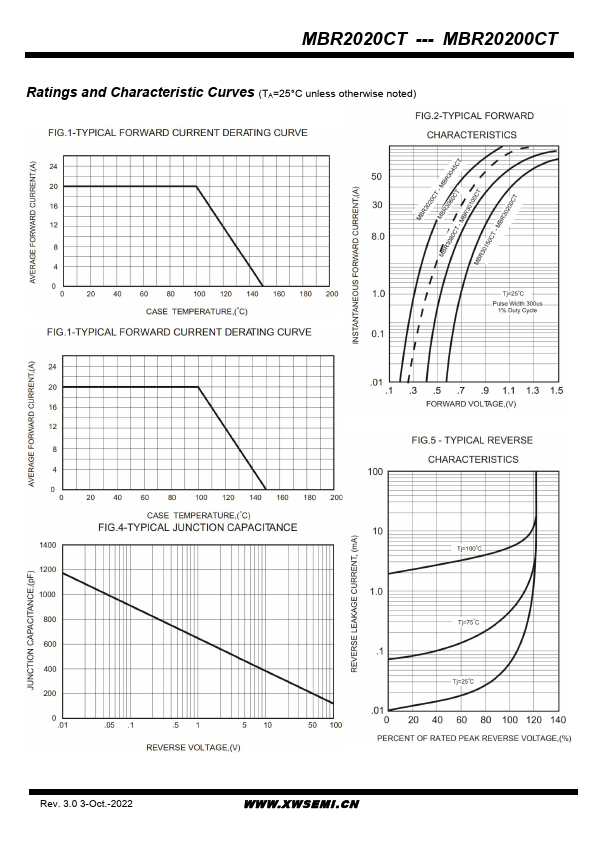

Additional preview pages of the MBR2060CT datasheet.

Maximum repetitive peak reverse voltage: 20V---200V.
Low profile package.
Low power losses, high efficiency.
Low forward voltage drop.
High surge capability.
Halogen free and RoHS compliant.
Lead-free finish TO-220AB Mechanical Characteristics.

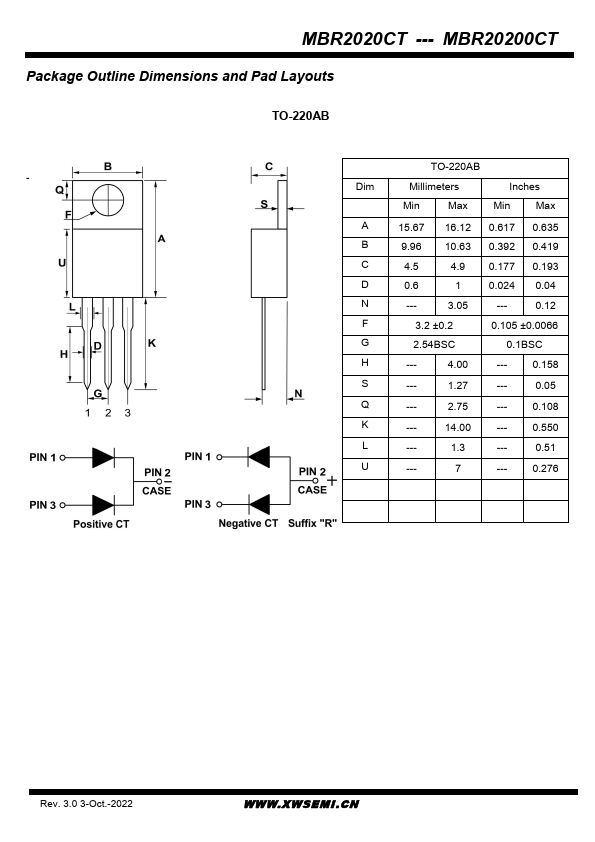

CASE: TO-220AB.
Mounting Position: Any.
Polarity: Cathode band denotes.
Terminal: Solder plated Maximum Ratings And Characteristics @ 25°C Ambient Temperature (unless otherwise noted) Parameter.
