MBR2020CT - Surface Mount Schottky Barrie Rectifier

Product Overview

Part number	MBR2020CT
Manufacturer	XINWEI
File Size	753.84 KB
Description	Surface Mount Schottky Barrie Rectifier
Datasheet	MBR2020CT Datasheet

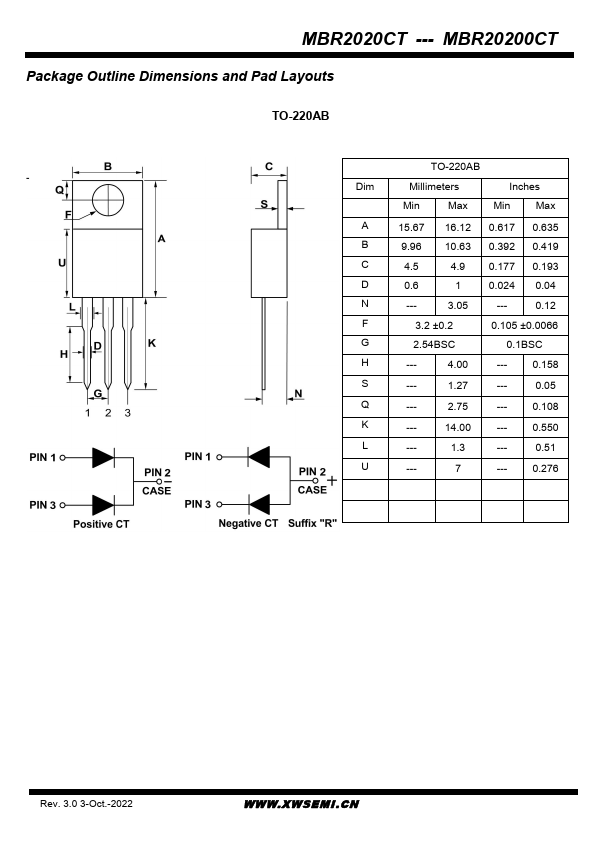

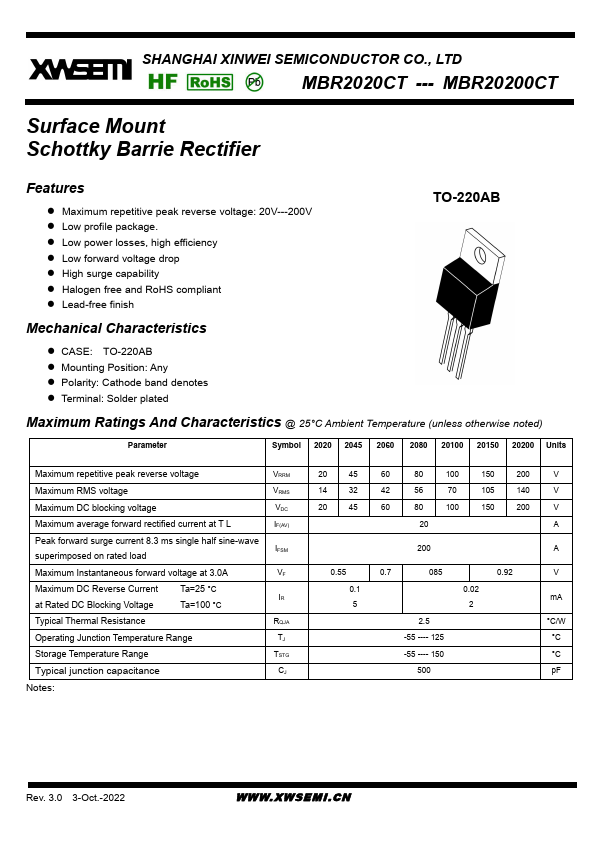

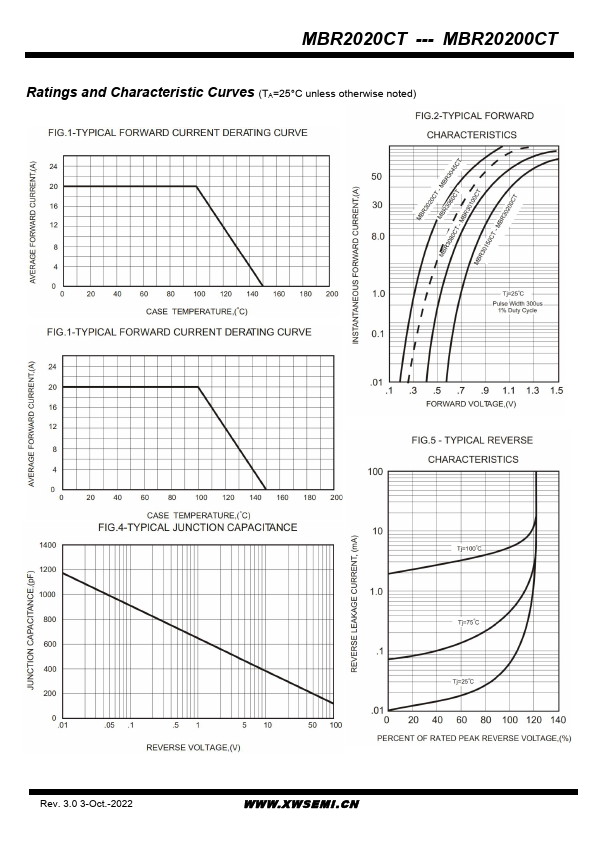

Additional preview pages of the MBR2020CT datasheet.

Maximum repetitive peak reverse voltage: 20V---200V.
Low profile package.
Low power losses, high efficiency.
Low forward voltage drop.
High surge capability.
Halogen free and RoHS compliant.
Lead-free finish TO-220AB Mechanical Characteristics.
CASE: TO-220AB.
Mounting Position: Any.
Polarity: Cathode band denotes.
Terminal: Solder plated Maximum Ratings And Characteristics @ 25°C Ambient Temperature (unless otherwise noted) Parameter.
