S510U - 5.0AMP SURFACE MOUNT SCHOTTKY BARRIER RECTIFIER

S510U Description

S52U THRU S525U 5.0 AMP SURFACE MOUNT SCHOTTKY BARRIER RECTIFIER .

S510U Features

* Schottky Brrier Chip
* Low Power Loss,High Efficiency
* Ideally Suited for Automatic Assembly
* Surge Overload Rating to 110A Peak
* Plastic Case Material has UL Flammability Classification Rating 94V-0 Mechanical Data
* Case: Molded plastic SMAF
* Terminals: Plated leads

S510U Applications

* shown on the here in document are examples of standard use and operation. Customers are responsible in comprehending the suitable use in particular applications. XINNUO makes no representation or warranty that such applications will be suitable for the specified use without further testing or modifi

📥 Download Datasheet

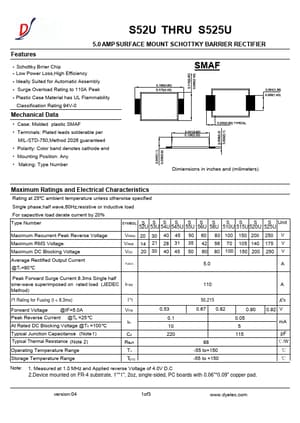

Preview of S510U PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
S510U
Manufacturer
XINNUO
File Size
909.21 KB
Datasheet
S510U-XINNUO.pdf
Description
5.0AMP SURFACE MOUNT SCHOTTKY BARRIER RECTIFIER
