S515B - Surface Mount Schottky Barrier Rectifier

S515B Description

Surface Mount Schottky Barrier Rectifier Reverse Voltage - 20 to 200V Forward Current - 5.0A .

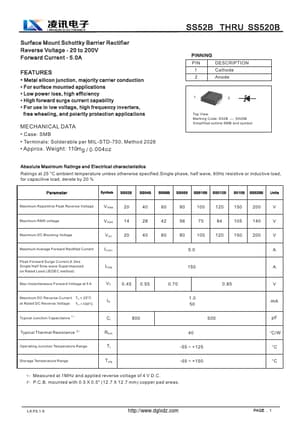

1 Cathode 2 Anode 12 Top View Marking Code: S52B. S520B Simplified outline SMB and symbol Absolute Maximum Ratings and Electrical characteri.

S515B Features

* Metal silicon junction, majority carrier conduction

S515B Applications

* Low power loss, high efficiency
* High forward surge current capability
* For use in low voltage, high frequency inverters, free wheeling, and polarity protection applications MECHANICAL DATA
* Case: SMB
* Terminals: Solderable per MIL-STD-750, Method 2026
