SR3200, SR3150-Won - 3.0A HIGH VOLTAGE SURFACE MOUNT SCHOTTKY BARRIER DIODE

Won-Top Electronics

Datasheet Details

Part number: SR3200, SR3150-Won
Manufacturer: Won-Top Electronics
File Size: 59.91 KB

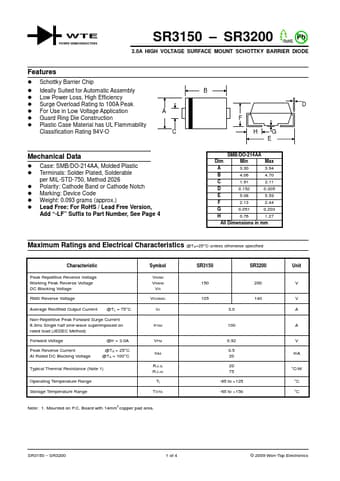

Datasheet: SR3150-Won-TopElectronics.pdf
Description: 3.0A HIGH VOLTAGE SURFACE MOUNT SCHOTTKY BARRIER DIODE
Note: This datasheet PDF includes multiple part numbers: SR3200, SR3150-Won.
Please refer to the document for exact specifications by model.

Schottky Barrier Chip Ideally Suited for Automatic Assembly Low Power Loss, High Efficiency Surge Overload Rating to 100A Peak For Use in Low Voltage Application Guard Ring Die Construction Plastic Case Material has UL Flammability Classification Rating 94V-O B D A F C H E G Mechanical Data Case: SMB/DO-214AA, Molded Plastic Terminals: Solder Plated, Solderable per MIL-STD-750, Method 2026 Polarity: Cathode Band or Cathode Notch Marking: Device Code Weight: 0.093 grams (approx. ) Lead Free: For.
