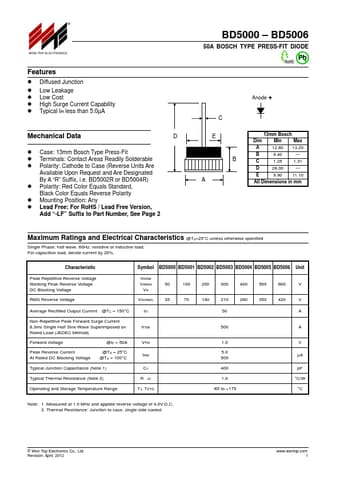

BD5005, BD5005_Won - PRESS-FIT DIODE

Won-Top Electronics

Datasheet Details

Part number	BD5005, BD5005_Won
Manufacturer	Won-Top Electronics
File Size	27.63 KB
Description	PRESS-FIT DIODE
Datasheet	BD5005_Won-TopElectronics.pdf
Note	This datasheet PDF includes multiple part numbers: BD5005, BD5005_Won. Please refer to the document for exact specifications by model.

Diffused Junction.
Low Leakage.
Low Cost.
High Surge Current Capability.
Typical IR less than 5.0µA Mechanical Data.
Case: 13mm Bosch Type Press-Fit.
Terminals: Contact Areas Readily Solderable.
Polarity: Cathode to Case (Reverse Units Are Available Upon Request and Are Designated By A “R” Suffix, i. e. BD5002R or BD5004R).
Polarity: Red Color Equals Standard, Black Color Equals Reverse Polarity.
Mounting Position: Any.
Lead Free: For RoHS.
