BD5003 - PRESS-FIT DIODE

Download the BD5003 datasheet PDF. This datasheet also covers the BD5003_Won variant, as both devices belong to the same press-fit diode family and are provided as variant models within a single manufacturer datasheet.

Features

  • Diffused Junction.
  • Low Leakage.
  • Low Cost.
  • High Surge Current Capability.
  • Typical IR less than 5.0µA Mechanical Data.
  • Case: 13mm Bosch Type Press-Fit.
  • Terminals: Contact Areas Readily Solderable.
  • Polarity: Cathode to Case (Reverse Units Are Available Upon Request and Are Designated By A “R” Suffix, i. e. BD5002R or BD5004R).
  • Polarity: Red Color Equals Standard, Black Color Equals Reverse Polarity.
  • Mounting Position: Any.
  • Lead Free: For RoHS.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (BD5003_Won-TopElectronics.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number BD5003
Manufacturer Won-Top Electronics
File Size 24.04 KB
Description PRESS-FIT DIODE
Datasheet download datasheet BD5003 Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
BD500 PNP Transistor INCHANGE
BD5005N 50 AMP BLOCK DIODES Shunye
BD5005P 50 AMP BLOCK DIODES Shunye
BD500B PNP Transistor INCHANGE
BD501 Silicon NPN Power Transistors INCHANGE

Other Datasheets by Won-Top Electronics

Part Number Description
BD5000 PRESS-FIT DIODE
BD5001 PRESS-FIT DIODE
BD5002 PRESS-FIT DIODE
BD5004 PRESS-FIT DIODE
BD5005 PRESS-FIT DIODE

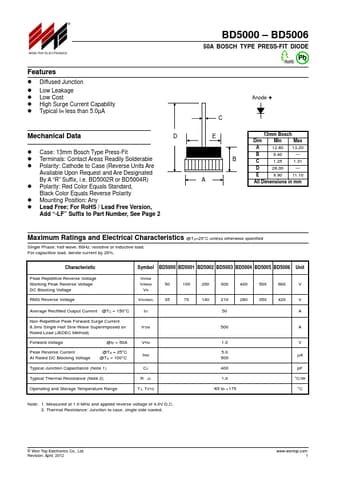

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text
® WON-TOP ELECTRONICS Features  Diffused Junction  Low Leakage  Low Cost  High Surge Current Capability  Typical IR less than 5.0µA Mechanical Data  Case: 13mm Bosch Type Press-Fit  Terminals: Contact Areas Readily Solderable  Polarity: Cathode to Case (Reverse Units Are Available Upon Request and Are Designated By A “R” Suffix, i.e. BD5002R or BD5004R)  Polarity: Red Color Equals Standard, Black Color Equals Reverse Polarity  Mounting Position: Any  Lead Free: For RoHS / Lead Free Version, Add “-LF” Suffix to Part Number, See Page 2 D BD5000 – BD5006 50A BOSCH TYPE PRESS-FIT DIODE Pb Anode + C E B A 13mm Bosch Dim Min Max A 12.80 13.20 B 9.40 — C 1.25 1.31 D 28.00 — E 9.90 11.
