PXAD184218FV - Thermally-Enhanced High Power RF LDMOS FET

Name: PXAD184218FV
SKU: PXAD184218FV-1353684

Wolfspeed

📥 Download Datasheet

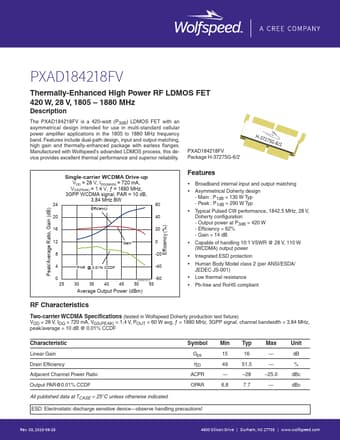

PXAD184218FV Datasheet Preview — Preview of PXAD184218FV PDF

Datasheet Details

Part number	PXAD184218FV
Manufacturer	Wolfspeed
File Size	361.49 KB
Description	Thermally-Enhanced High Power RF LDMOS FET
Datasheet	PXAD184218FV-Wolfspeed.pdf

PXAD184218FV Product details

Description

The PXAD184218FV is a 420-watt (P3dB) LDMOS FET with an asymmetrical design intended for use in multi-standard cellular power amplifier applications in the 1805 to 1880 MHz frequency band.

Features

include dual-path design, input and output matching, high gain and thermally-enhanced package with earless flanges. Manufactured with Wolfspeed's advanded LDMOS process, this device provides excellent thermal performance and superior reliability. PXAD184218FV Package H-37275G-6/2 Peak/Average Ratio, Gain (dB) Efficiency (%) Single-carrier WCDMA Drive-up VDD = 28 V, IDQ(MAIN) = 720 mA, VGS(PEAK) = 1.4 V, ƒ = 1880 MHz, 3GPP WCDMA signal, PAR = 10 dB, 3.84 MHz BW 24 60 Efficiency 20 40 16 20 1.
