E3M0120090J - Silicon Carbide Power MOSFET

Product Overview

Wolfspeed

📥 Download Datasheet

E3M0120090J Silicon Carbide Power MOSFET by Wolfspeed - Datasheet Preview — Datasheet preview – E3M0120090J

Datasheet Details

Part number	E3M0120090J
Manufacturer	Wolfspeed
File Size	961.15 KB
Description	Silicon Carbide Power MOSFET
Datasheet	E3M0120090J Datasheet

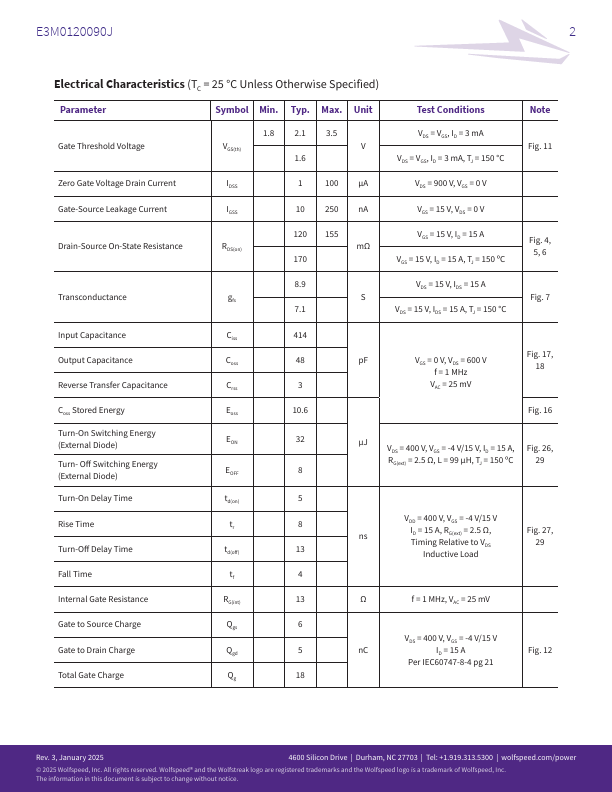

Additional preview pages of the E3M0120090J datasheet.

Product details

Features

3rd generation of SiC MOSFET technology.
High blocking voltage with low on-resistance.
High speed switching with low capacitances.
Fast intrinsic diode with low reverse recovery (Qrr).
Halogen free, RoHS compliant.
Wide creepage (~7 mm) between drain and source.
Automotive qualified (AEC-Q101) and PPAP capable Drain (TAB) TO-263-7 Gate (Pin 1) Driver Source (Pin 2) Power Source (Pin 3,4,5,6,7) Package Types: TO-263-7 PN’s: E3M0.
