WM8232 - 70MSPS 3-Channel AFE

Description

The WM8232 is a 16-bit analogue front end/digitiser IC which processes and digitises the analogue output signals from CCD sensors or Contact Image Sensors (CIS) at pixel sample rates of up to 35MSPS.

Features

  • a sensor timing clock generator for both CCD and CIS sensors. The clock generator can accept a slow or fast reference clock input and also has a flexible timing adjustment function for output timing clocks to allow use of many different sensors.

📥 Download Datasheet

Datasheet Details

Part number WM8232
Manufacturer Wolfson Microelectronics
File Size 1.16 MB
Description 70MSPS 3-Channel AFE
Datasheet download datasheet WM8232 Datasheet

📁 Similar Datasheet

  • WM8233 - 210MSPS 6-Channel AFE (Cirrus Logic)
  • WM8235 - 135-MSPS 9-Channel AFE (Cirrus Logic)
  • WM8214 - 40MSPS 16-bit CCD Digitiser (Wolfson Microelectronics plc)
  • WM8214 - 40MSPS 16-bit CCD Digitiser (Cirrus Logic)
  • WM8255 - Single Channel 16-bit CIS/CCD AFE (Wolfson)
  • WM8259 - Single Channel 16-Bit CIS/CCD AFE (Wolfson)
  • WM8281 - Low Power Audio (Cirrus Logic)
  • WM8141 - 12-bit 6MSPS CIS/CCD Analogue Front End/Digitiser (Wolfson Microelectronics plc)
  • WM8143-10 - 10-bit/6MSPS CCD Signal Processor (Wolfson Microelectronics plc)
  • WM8143-12 - 12-bit/4MSPS CCD Signal Processor (Wolfson Microelectronics plc)
Other Datasheets by Wolfson Microelectronics

Full PDF Text Transcription

Click to expand full text

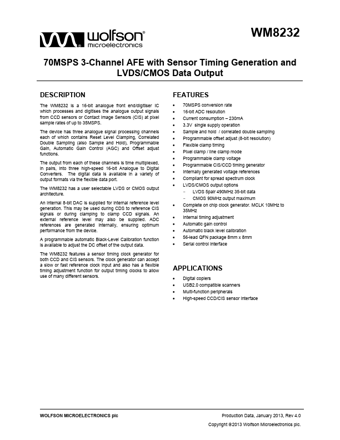

w WM8232 70MSPS 3-Channel AFE with Sensor Timing Generation and LVDS/CMOS Data Output DESCRIPTION The WM8232 is a 16-bit analogue front end/digitiser IC which processes and digitises the analogue output signals from CCD sensors or Contact Image Sensors (CIS) at pixel sample rates of up to 35MSPS. The device has three analogue signal processing channels each of which contains Reset Level Clamping, Correlated Double Sampling (also Sample and Hold), Programmable Gain, Automatic Gain Control (AGC) and Offset adjust functions. The output from each of these channels is time multiplexed, in pairs, into three high-speed 16-bit Analogue to Digital Converters. The digital data is available in a variety of output formats via the flexible data port.
