WST3407S - P-Ch MOSFET

Name: WST3407S
SKU: WST3407S-1582437

Winsok

📥 Download Datasheet

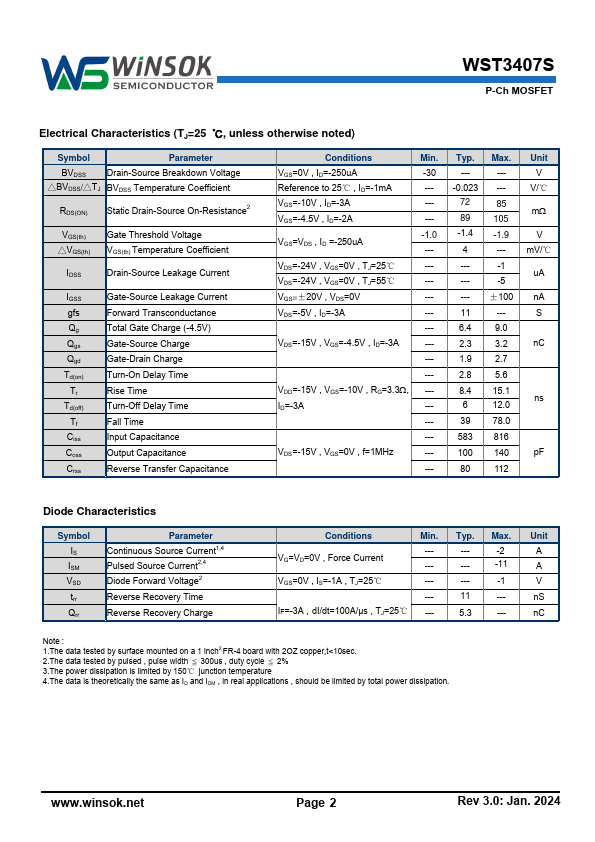

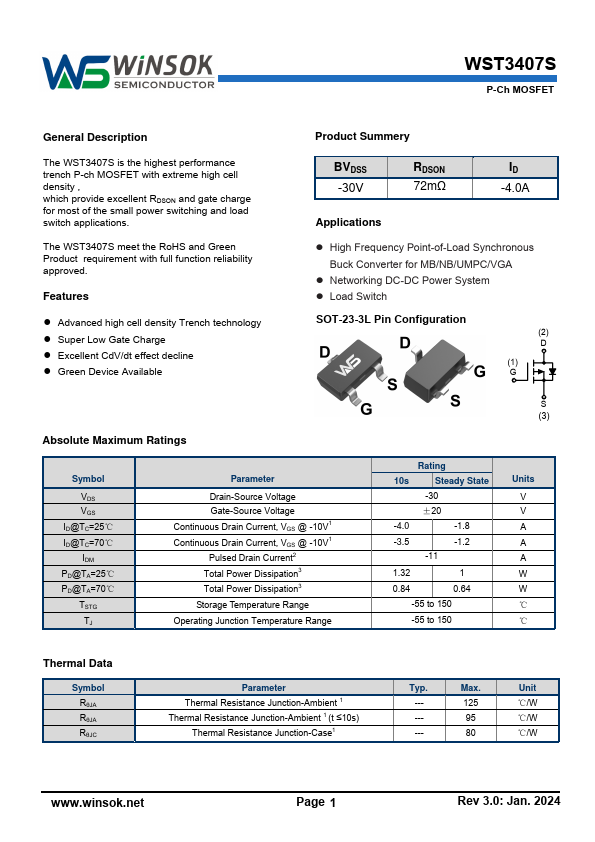

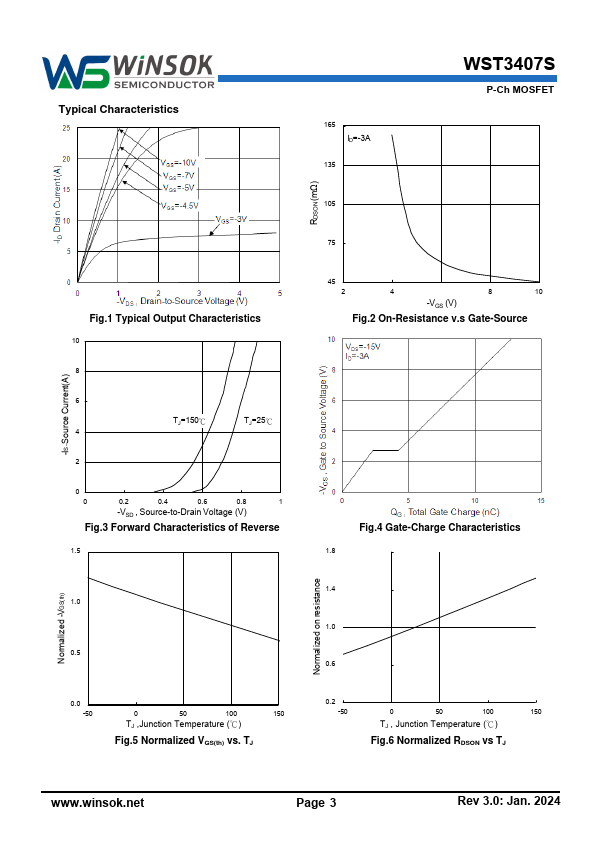

WST3407S Datasheet Preview — Preview of WST3407S PDF

Datasheet Details

Part number	WST3407S
Manufacturer	Winsok
File Size	2.42 MB
Description	P-Ch MOSFET
Datasheet	WST3407S-Winsok.pdf

WST3407S Product details

Description

The WST3407S is the highest performance trench P-ch MOSFET with extreme high cell density , which provide excellent RDSON and gate charge for most of the small power switching and load switch applications.

Features

z Advanced high cell density Trench technology z Super Low Gate Charge z Excellent CdV/dt effect decline z Green Device Available Product Summery BVDSS -30V RDSON 72mΩ ID -4.0A.
