WST3401A - P-Ch MOSFET

Description

The WST3401A is the highest performance trench P-Ch MOSFET with extreme high cell density , which provide excellent RDSON and gate charge for most of the small power switching and load switch applications .

Features

  • z Advanced high cell density Trench technology z Super Low Gate Charge z Excellent CdV/dt effect decline z Green Device Available BVDSS -30V RDSON 48mΩ ID -5.0A.

📥 Download Datasheet

Datasheet Details

Part number WST3401A
Manufacturer Winsok
File Size 2.47 MB
Description P-Ch MOSFET
Datasheet download datasheet WST3401A Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
WST33H0NC 300W GaN Transistor Wolfspeed
WST018QQAA1 Display W Display
WST2318 N-Channel 20V MOSFET VBsemi
WST2907 PNP EPITAXIAL SILICON TRANSISTOR Wooseok
WST6010AN High-side driver Winsemi

Other Datasheets by Winsok

Part Number Description
WST3401 P-Ch MOSFET
WST3400 N-Ch MOSFET
WST3403 P-Ch MOSFET
WST3404A N-Ch MOSFET
WST3407S P-Ch MOSFET

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

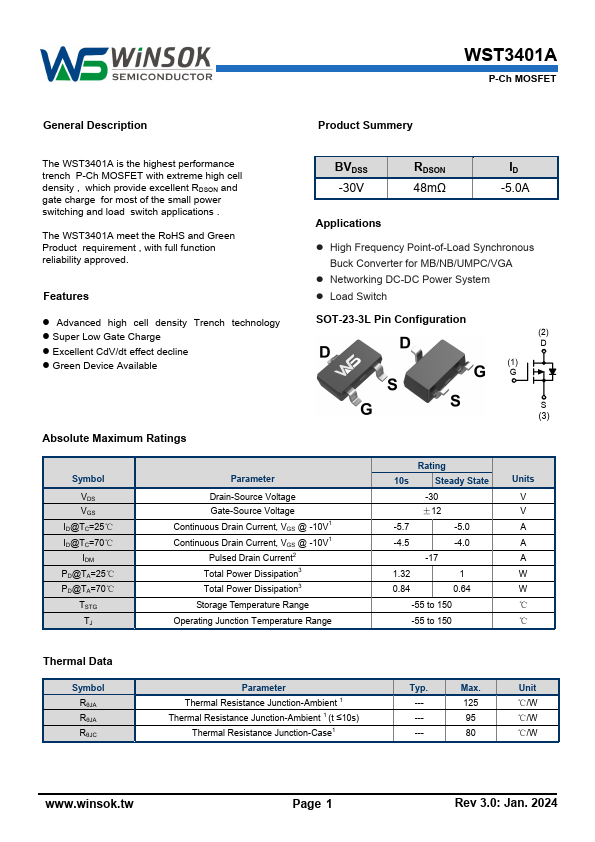

WST3401A P-Ch MOSFET General Description Product Summery The WST3401A is the highest performance trench P-Ch MOSFET with extreme high cell density , which provide excellent RDSON and gate charge for most of the small power switching and load switch applications . The WST3401A meet the RoHS and Green Product requirement , with full function reliability approved. Features z Advanced high cell density Trench technology z Super Low Gate Charge z Excellent CdV/dt effect decline z Green Device Available BVDSS -30V RDSON 48mΩ ID -5.
