WS2994 - Fast turn-off Dual LLC Synchronous Rectifier Controller

Product Overview

Winsemi

Datasheet Details

Part number	WS2994
Manufacturer	Winsemi
File Size	0.96 MB
Description	Fast turn-off Dual LLC Synchronous Rectifier Controller
Datasheet	WS2994 Datasheet

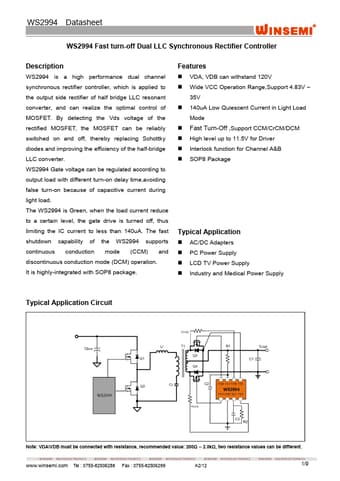

Additional preview pages of the WS2994 datasheet.

Product details

Description

WS2994 is a high performance dual channel synchronous rectifier controller, which is applied to the output side rectifier of half bridge LLC resonant converter, and can realize the optimal control of MOSFET.

Features

VDA, VDB can withstand 120V.
Wide VCC Operation Range,Support 4.83V ~ 35V.
140uA Low Quiescent Current in Light Load Mode.
Fast Turn-Off ,Support CCM/CrCM/DCM.
High level up to 11.5V for Driver.
Interlock function for Channel A&B.
SOP8 Package Typical.
