WS20P4SMA Power Transient Voltage Suppressor

WS20P4SMA Description

Document: W0302002 , Rev:A .

WS20P4SMA Features

* WSxxP4SMA(-B) Power Transient Voltage Suppressor
* 400 watts Peak Pulse Power (10/1000μs)
* Unidirectional and Bidirectional Protection
* Fast Response Time : Typically < 1ns
* Excellent Clamping Capability
* Glass Passivated Junction
* Built-in Strain relief
* Low indu

WS20P4SMA Applications

* JEDEC DO-214AC package
* Molding compound flammability rating: UL 94V-0
* Marking: Marking Code
* Packaging: Tape and Reel per EIA 481
* RoHS &UL497B Compliant
* I/O Interfaces
* Power lines
* Automotive and Telecommunication
* Computers &Consumer Electronics

📥 Download Datasheet

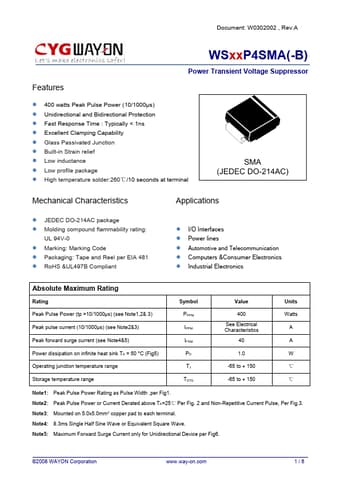

Preview of WS20P4SMA PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
WS20P4SMA
Manufacturer
WAYON
File Size
710.97 KB
Datasheet
WS20P4SMA-WAYON.pdf
Description
Power Transient Voltage Suppressor
