WS21351 Half-bridge power IC

Winsemi

Description

datasheet pdf - http://www.DataSheet4U.net/ http://www.DataSheet4U.net/ WS21351 Half-bridge power IC for CFL lamps .
The WS21351 is a high-voltage monolithic integrated circuit which is designed for driving Compact Fluorescent Lamps (CFL) in a half-bridge configurati.

📥 Download Datasheet

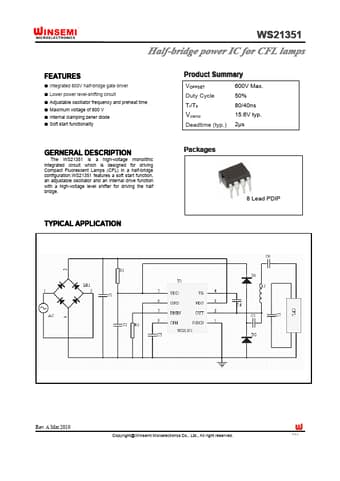

WS21351 Datasheet Preview — Preview of WS21351 PDF

Datasheet Specifications

Part number: WS21351
Manufacturer: Winsemi
File Size: 419.69 KB
Datasheet: WS21351_Winsemi.pdf
Description: Half-bridge power IC

Features

* Integrated 600V half-bridge gate driver
* Lower power level-shifting circuit
* Adjustable oscillator frequency and preheat time
* Maximum voltage of 600 V
* Internal clamping zener diode
* Soft start functionality Product Summary VOFFSET Duty Cycle Tr/Tp 600V Max. 50% 80/4
