WGF65R850 - 650V N-Channel MOSFET

Product Overview

📥 Download Datasheet

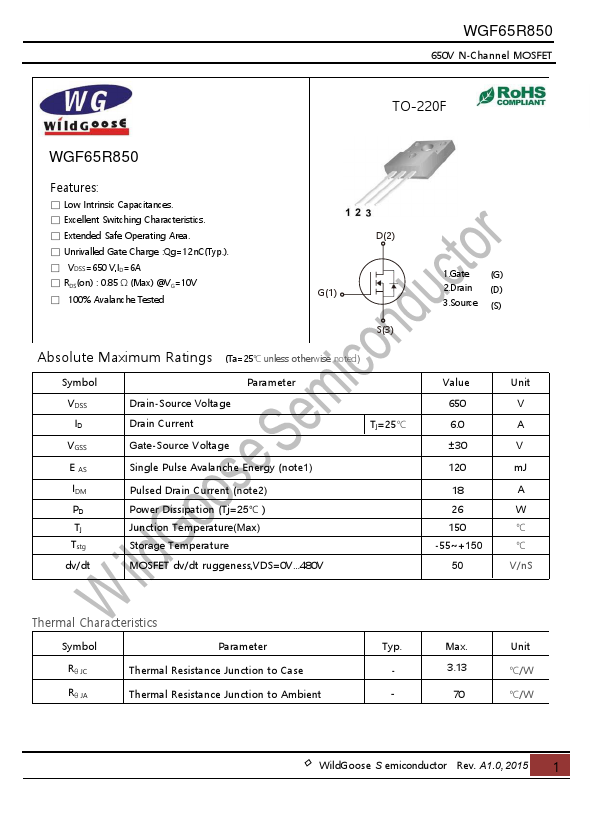

WGF65R850 650V N-Channel MOSFET by WildGoose - Datasheet Preview — Datasheet preview – WGF65R850

Datasheet Details

Part number	WGF65R850
Manufacturer	WildGoose
File Size	2.27 MB
Description	650V N-Channel MOSFET
Datasheet	WGF65R850 Datasheet

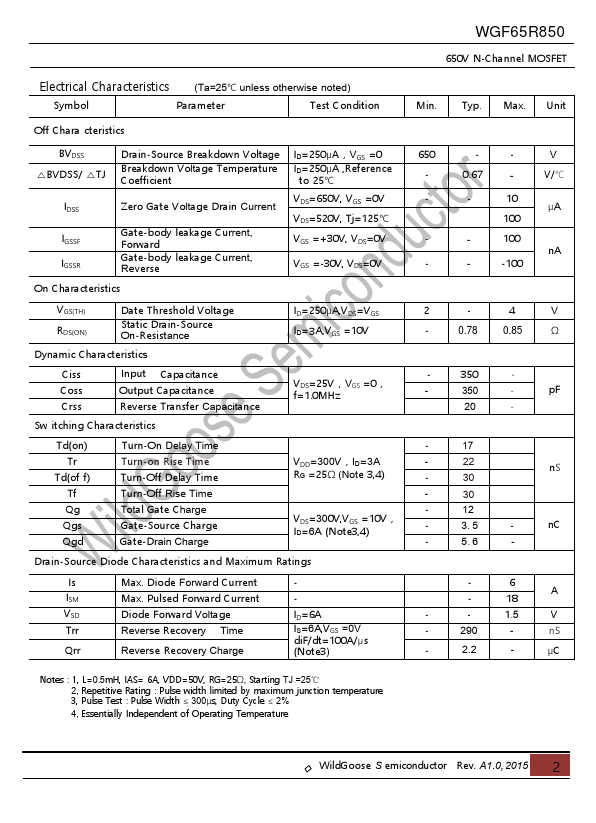

Additional preview pages of the WGF65R850 datasheet.

Product details

Features

Low Intrinsic Capacitances.
Excellent Switching Characteristics.
Extended Safe Operating Area.
Unrivalled Gate Charge :Qg=12 nC(Typ. ).
VDSS=650 V,ID=6A.
RDS(on) : 0.85 Ω (Max) @VG=10V.
100% Avalanche Tested D(2) G(1) S(3) Absolute Maximum Ratings (Ta=25℃ unless otherwise noted) Symbol Parameter VDSS ID VGSS E AS IDM PD Tj Tstg dv/dt Drain-Source Voltage Drain Current Gate-Source Voltage Single Pulse Avalanche Energy (not.
