W3EG264M64ETSR-JD3 - 1GB - 2x64Mx64 DDR SDRAM REGISTERED

General Description

The W3EG264M64ETSR is a 2x64Mx64 Double Data Rate SDRAM memory module based on 512Mb DDR SDRAM component.

The module consists of sixteen 64Mx8 DDR SDRAMs in 66 pin TSOP package mounted on a 184 Pin FR4 substrate.

Synchronous design allows precise cycle control with the use of system clock.

Key Features

  • Double-data-rate architecture Clock speeds of 133MHz and 166MHz Bi-directional data strobes (DQS) Differential clock inputs (CK & CK#) Programmable Read Latency 2,2,5 (clock) Programmable Burst Length (2,4,8) Programmable Burst type (sequential & interleave) Edge aligned data output, center aligned data input Auto and self refresh Serial presence detect Dual Rank Power Supply:.
  • VCC = VCCQ = +2.5V (133 and 166MHz) JEDEC standard 184 pin DIMM package www. DataSheet4U. com PCB height: 30.48.

📥 Download Datasheet

Datasheet Details

Part number W3EG264M64ETSR-JD3
Manufacturer White Electronic
File Size 334.04 KB
Description 1GB - 2x64Mx64 DDR SDRAM REGISTERED
Datasheet download datasheet W3EG264M64ETSR-JD3 Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer

Other Datasheets by White Electronic

Part Number Description
W3EG264M64EFSU-D4 1GB - 2x64Mx64 DDR SDRAM
W3EG264M72AFSRXXXD3 1GB - 2x64Mx72 DDR SDRAM REGISTERED ECC
W3EG264M72EFSUXXXD4 1GB - 2x64Mx72 DDR SDRAM
W3EG2128M72AFSR-AD3 2GB - 2x128Mx72 DDR SDRAM REGISTERED ECC
W3EG2128M72AFSR-D3 2GB - 2x128Mx72 DDR SDRAM REGISTERED ECC

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

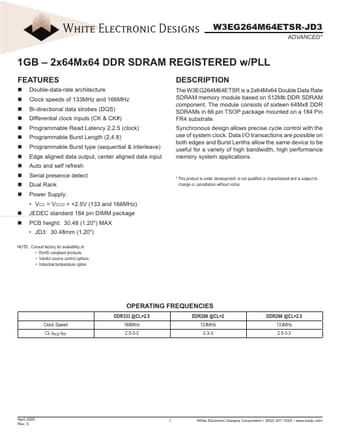

White Electronic Designs W3EG264M64ETSR-JD3 ADVANCED* 1GB – 2x64Mx64 DDR SDRAM REGISTERED w/PLL FEATURES Double-data-rate architecture Clock speeds of 133MHz and 166MHz Bi-directional data strobes (DQS) Differential clock inputs (CK & CK#) Programmable Read Latency 2,2,5 (clock) Programmable Burst Length (2,4,8) Programmable Burst type (sequential & interleave) Edge aligned data output, center aligned data input Auto and self refresh Serial presence detect Dual Rank Power Supply: • VCC = VCCQ = +2.5V (133 and 166MHz) JEDEC standard 184 pin DIMM package www.DataSheet4U.com PCB height: 30.48 (1.20") MAX • JD3: 30.48mm (1.
