W3EG2128M72AFSR-D3 - 2GB - 2x128Mx72 DDR SDRAM REGISTERED ECC

Download the W3EG2128M72AFSR-D3 datasheet PDF. This datasheet also covers the W3EG2128M72AFSR-AD3 variant, as both devices belong to the same 2gb - 2x128mx72 ddr sdram registered ecc family and are provided as variant models within a single manufacturer datasheet.

General Description

The W3EG2128M72AFSR is a 2x128Mx72 Double Data Rate SDRAM memory module based on 512Mb DDR SDRAM components.

The module consists of thirtysix 128Mx4 components, in FBGA packages mounted on a 184 pin FR4 substrate.

Synchronous design allows precise cycle control with the use of system clock.

Key Features

  • Double-data-rate architecture DDR266, DDR333, and DDR400 Bi-directional data strobes (DQS) Phase-lock loop (PLL) clock driver to reduce loading Differential clock inputs (CK & CK#) ECC error detection and correction Programmable Read Latency 2, 2.5 (clock) Programmable Burst Length (2, 4,8) Programmable Burst type (sequential & interleave) Edge aligned data output, center aligned data input. Auto and self refresh Serial presence detect Dual Rank www. DataSheet4U. com.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (W3EG2128M72AFSR-AD3_WhiteElectronic.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number W3EG2128M72AFSR-D3
Manufacturer White Electronic
File Size 298.80 KB
Description 2GB - 2x128Mx72 DDR SDRAM REGISTERED ECC
Datasheet download datasheet W3EG2128M72AFSR-D3 Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer

Other Datasheets by White Electronic

Part Number Description
W3EG2128M72AFSR-AD3 2GB - 2x128Mx72 DDR SDRAM REGISTERED ECC
W3EG2256M72ASSR-AJD3 4GB - 2x256Mx72 DDR SDRAM REGISTERED ECC
W3EG2256M72ASSR-JD3 4GB - 2x256Mx72 DDR SDRAM REGISTERED ECC
W3EG264M64EFSU-D4 1GB - 2x64Mx64 DDR SDRAM
W3EG264M64ETSR-JD3 1GB - 2x64Mx64 DDR SDRAM REGISTERED

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

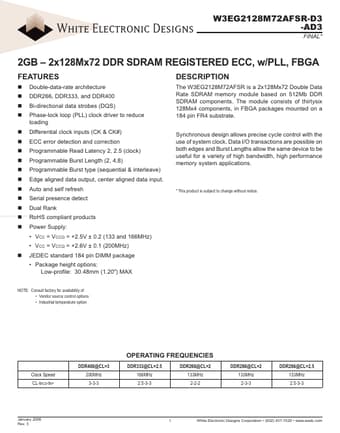

White Electronic Designs W3EG2128M72AFSR-D3 -AD3 FINAL* 2GB – 2x128Mx72 DDR SDRAM REGISTERED ECC, w/PLL, FBGA FEATURES Double-data-rate architecture DDR266, DDR333, and DDR400 Bi-directional data strobes (DQS) Phase-lock loop (PLL) clock driver to reduce loading Differential clock inputs (CK & CK#) ECC error detection and correction Programmable Read Latency 2, 2.5 (clock) Programmable Burst Length (2, 4,8) Programmable Burst type (sequential & interleave) Edge aligned data output, center aligned data input. Auto and self refresh Serial presence detect Dual Rank www.DataSheet4U.com DESCRIPTION The W3EG2128M72AFSR is a 2x128Mx72 Double Data Rate SDRAM memory module based on 512Mb DDR SDRAM components.
