BAS19H - (BAS19H - BAS21H) Surface Mount Switching Diode

This page provides the datasheet information for the BAS19H, a member of the BAS21H (BAS19H - BAS21H) Surface Mount Switching Diode family.

Datasheet Summary

Features

  • Fast Switching Speed.
  • Surface Mount Package Ideally Suited for Automatic Insertion.
  • High Conductance.
  • For General Purpose Switching.

📥 Download Datasheet

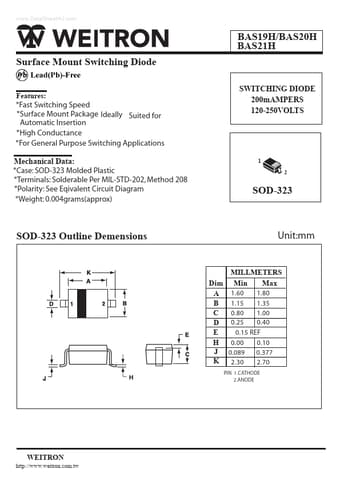

Datasheet preview – BAS19H

Datasheet Details

Part number BAS19H
Manufacturer Weitron Technology
File Size 301.64 KB
Description (BAS19H - BAS21H) Surface Mount Switching Diode
Datasheet download datasheet BAS19H Datasheet
Additional preview pages of the BAS19H datasheet.

📁 Similar Datasheet

  • BAS19 - SWITCHING DIODE (Sangdest Microelectronics)
  • BAS19 - Plastic-Encapsulate Diodes (Eris)
  • BAS19 - High-voltage switching diode (nexperia)
  • BAS19 - Switching Diode (GOODARK)
  • BAS19 - SURFACE-MOUNT FAST SWITCHING DIODE (DIODES)
  • BAS19 - Small Signal Switching Diodes (Vishay)
  • BAS19 - Surface mount switching diode (GME)
  • BAS19 - Three Terminals SMD Switching Diodes (TAITRON)
  • BAS19 - Silicon Epitaxial Planar Diodes (JGD)
  • BAS19 - SURFACE MOUNT SWITCHING DIODE (DC COMPONENTS)
Other Datasheets by Weitron Technology
  • BAS16TDW - Surface Mount Switching Multi-Chip Diode Array
  • BAS20H - (BAS19H - BAS21H) Surface Mount Switching Diode
  • BAS21H - (BAS19H - BAS21H) Surface Mount Switching Diode

Full PDF Text Transcription

Click to expand full text
www.DataSheet4U.com BAS19H/BAS20H BAS21H Surface Mount Switching Diode Features: *Fast Switching Speed *Surface Mount Package Ideally Suited for Automatic Insertion *High Conductance *For General Purpose Switching Applications Mechanical Data: *Case: SOD-323 Molded Plastic *Terminals: Solderable Per MIL-STD-202, Method 208 *Polarity: See Eqivalent Circuit Diagram *Weight: 0.004grams(approx) SWITCHING DIODE 200mAMPERS 120-250VOLTS 1 2 SOD-323 SOD-323 Outline Demensions Unit:mm MILLMETERS Min Max Dim 1.60 1.80 A B 1.15 1.35 C 0.80 1.00 0.25 0.40 D E 0.15 REF H 0.00 0.10 J 0.089 0.377 K 2.30 2.70 PIN 1.CATHODE 2.ANODE http://www.weitron.com.
