BAS19W Surface Mount Switching Diode

BAS19W Description

Production specification Surface Mount Switching Diode BAS19W/BAS20W/BAS21W .

BAS19W Features

* Fast switching speed.
* High conductance. Pb Lead-free

BAS19W Applications

* Surface mount package ideally suited for automatic insertion. APPLICATIONS
* For general purpose switching applications. SOT-323 ORDERING INFORMATION Type No. BAS19W BAS20W BAS21W Marking KA8 KT2 KT3 Package Code SOT-323 SOT-323 SOT-323 MAXIMUM RATING @ Ta=25℃ unless otherwise sp

📥 Download Datasheet

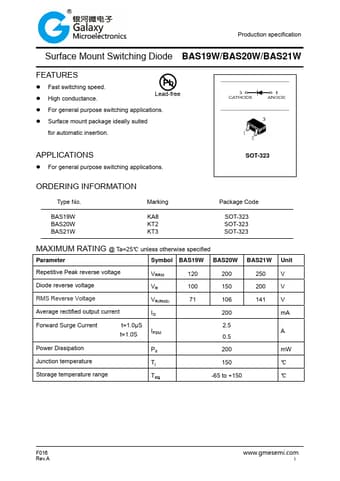

Preview of BAS19W PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
BAS19W
Manufacturer
GME
File Size
186.04 KB
Datasheet
BAS19W-GME.pdf
Description
Surface Mount Switching Diode
