WCMA2016U4X - 128K x 16 STATIC

📥 Download Datasheet

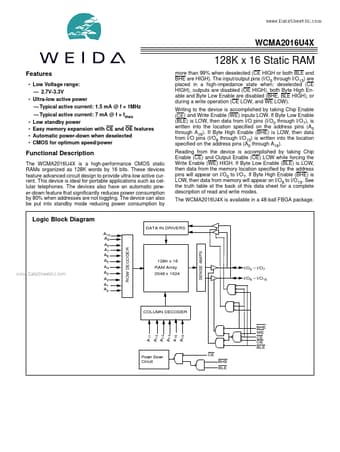

WCMA2016U4X Datasheet Preview — Preview of WCMA2016U4X PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	WCMA2016U4X
Manufacturer	Weida Semiconductor
File Size	327.85 KB
Description	128K x 16 STATIC
Datasheet	WCMA2016U4X_WeidaSemiconductor.pdf

WCMA2016U4X Product details

Description

of read and write modes.

Features

Low Voltage range:.
2.7V-3.3V.
Ultra-low active power.
Typical active current: 1.5 mA @ f = 1MHz.
Typical active current: 7 mA @ f = fmax Low standby power Easy memory expansion with CE and OE features Automatic power-down when deselected CMOS for optimum speed/power more than 99% when deselected (CE HIGH or both BLE and BHE are HIGH). The input/output pins (I/O0 through I/O15) are placed in a high-impedance st.
