WCM-1210HS-600T - COMMON MODE CHOKE

Download the WCM-1210HS-600T datasheet PDF. This datasheet also covers the WCM-1210HS variant, as both devices belong to the same common mode choke family and are provided as variant models within a single manufacturer datasheet.

Key Features

📥 Download Datasheet

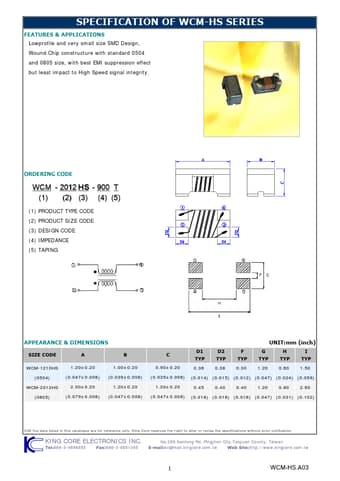

WCM-1210HS-600T common mode choke by KING CORE - Datasheet Preview — Note: The manufacturer provides a single datasheet file (WCM-1210HS-KINGCORE.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number	WCM-1210HS-600T
Manufacturer	KING CORE
File Size	309.18 KB
Description	COMMON MODE CHOKE
Datasheet	WCM-1210HS-600T Datasheet

📁 Similar Datasheet

Part Number	Description	Manufacturer
WCM1005	CHIP INDUCTOR	AiT Semiconductor
WCM1210	SMD Wire Wound Common Mode Filter	SPORTON
WCM1600	AC / DC Sensing Current Module	Winson
WCM1608	CHIP INDUCTOR	AiT Semiconductor
WCM1700	AC / DC Sensing Current Module	Winson

Other Datasheets by KING CORE

Part Number	Description
WCM-1210HS-250T	COMMON MODE CHOKE
WCM-1210HS-900T	COMMON MODE CHOKE
WCM-1210HS	COMMON MODE CHOKE
WCM-2012	COMMON MODE CHOKE
WCM-2012-120T	COMMON MODE CHOKE

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

SPECIFICATION OF WCM-HS SERIES FEATURES & APPLICATIONS Lowprofile and very small size SMD Design, Wound Chip constructure with standard 0504 and 0805 size, with best EMI suppression effect but least impact to High Speed signal integrity. ORDERING CODE (1) PRODUCT TYPE CODE (2) PRODUCT SIZE CODE (3) DESIGN CODE (4) IMPEDANCE (5) TAPING APPEARANCE & DIMENSIONS SIZE CODE A B WCM-1210HS (0504) WCM-2012HS (0805) 1.20±0.20 (0.047±0.008) 2.00±0.20 (0.079±0.008) 1.00±0.20 (0.039±0.008) 1.20±0.20 (0.047±0.008) UNIT:mm (inch) C 0.90±0.20 D1 TYP 0.36 D2 TYP 0.38 F TYP 0.30 G TYP 1.20 H TYP 0.60 I TYP 1.50 (0.035±0.008) (0.014) (0.015) (0.012) (0.047) (0.024) (0.059) 1.20±0.20 0.45 0.40 0.40 1.20 0.80 2.60 (0.047±0.008) (0.018) (0.016) (0.016) (0.047) (0.031) (0.
