BYR29X-800P Ultrafast power diodes

BYR29X-800P Description

BYR29X-800P Ultrafast power diode 19 October 2017 Product data sheet 1.General .
Ultrafast power diode in a SOD113 (2-lead TO-220F) plastic package. Fast switching. Low forward voltage d.

BYR29X-800P Features

* Fast switching
* Low forward voltage drop

BYR29X-800P Applications

* Discontinuous Current Mode (DCM) Power Factor Correction (PFC)
* High frequency switched-mode power supplies
* TV power supplies 4. Quick reference data Table 1. Quick reference data Symbol Parameter Conditions VR IF(AV) reverse voltage average forward current DC δ

📥 Download Datasheet

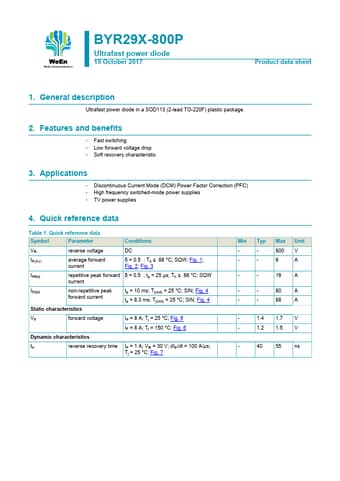

Preview of BYR29X-800P PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
BYR29X-800P
Manufacturer
WeEn
File Size
242.77 KB
Datasheet
BYR29X-800P-WeEn.pdf
Description
Ultrafast power diodes
