BYR29X-600 Ultrafast power diode

BYR29X-600 Description

BYR29X-600 Ultrafast power diode 19 October 2017 Product data sheet 1.General .
Ultrafast power diode in a SOD113 (2-lead TO-220F) plastic package. Fast switching. Isolated plastic pack.

BYR29X-600 Features

* Fast switching
* Isolated plastic package
* Low forward voltage drop

BYR29X-600 Applications

* Discontinuous Current Mode (DCM) Power Factor Correction (PFC)
* High frequency switched-mode power supplies 4. Quick reference data Table 1. Quick reference data Symbol Parameter Conditions VR reverse voltage DC IF(AV) average forward current δ = 0.5 ; Th ≤ 73 °C; SQW;

📥 Download Datasheet

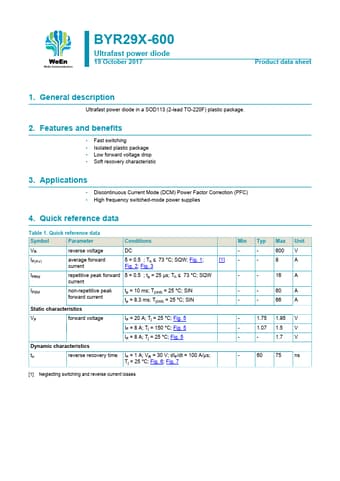

Preview of BYR29X-600 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
BYR29X-600
Manufacturer
WeEn
File Size
216.21 KB
Datasheet
BYR29X-600-WeEn.pdf
Description
Ultrafast power diode
