BT136S-600E - 4Q Triac

WeEn

The BT136S-600E by WeEn is a 4Q Triac. Below is the official datasheet preview.

📥 Download Datasheet

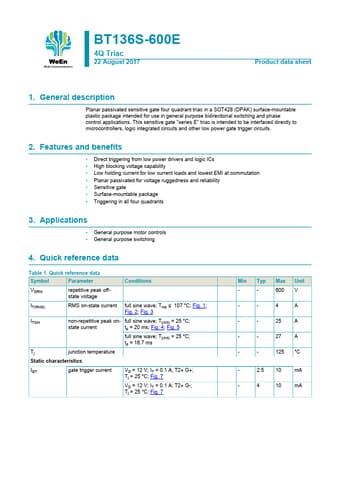

BT136S-600E 4Q Triac by WeEn - Datasheet Preview — Official preview page of the **BT136S-600E** 4Q Triac datasheet (WeEn).

Datasheet Details

Part number	BT136S-600E
Manufacturer	WeEn
File Size	253.28 KB
Description	4Q Triac
Datasheet	BT136S-600E-WeEn.pdf
Additional preview pages of the BT136S-600E datasheet.

BT136S-600E Product details

Description

Planar passivated sensitive gate four quadrant triac in a SOT428 (DPAK) surface-mountable plastic package intended for use in general purpose bidirectional switching and phase control applications.

Features

Direct triggering from low power drivers and logic ICs.
High blocking voltage capability.
Low holding current for low current loads and lowest EMI at commutation.
Planar passivated for voltage ruggedness and reliability.
Sensitive gate.
Surface-mountable package.
Triggering in all four quadrants 3.
