BT136S-600 - 4Q Triac

Name: BT136S-600
SKU: BT136S-600-121638

NXP

📥 Download Datasheet

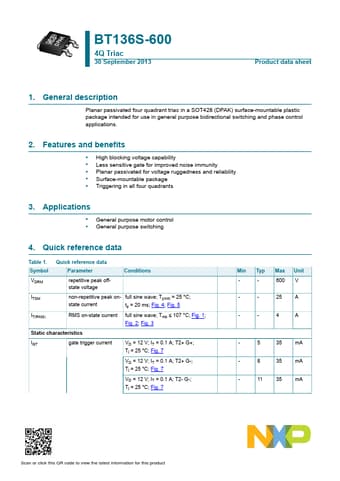

BT136S-600 Datasheet Preview — Preview of BT136S-600 PDF

Datasheet Details

Part number	BT136S-600
Manufacturer	NXP
File Size	212.29 KB
Description	4Q Triac
Datasheet	BT136S-600_PhilipsSemiconductors.pdf

BT136S-600 Product details

Description

Planar passivated four quadrant triac in a SOT428 (DPAK) surface-mountable plastic package intended for use in general purpose bidirectional switching and phase control applications.

Features

High blocking voltage capability.
Less sensitive gate for improved noise immunity.
Planar passivated for voltage ruggedness and reliability.
Surface-mountable package.
Triggering in all four quadrants 3.
