BT136S-600D - 4Q Triac

WeEn

The BT136S-600D by WeEn is a 4Q Triac. Below is the official datasheet preview.

📥 Download Datasheet

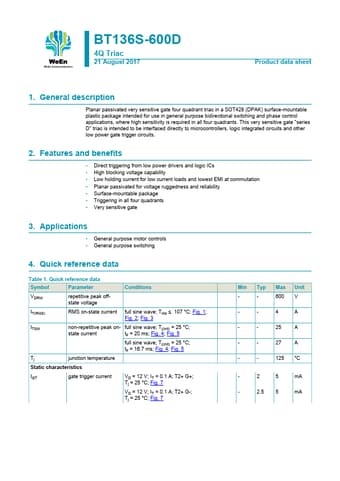

BT136S-600D 4Q Triac by WeEn - Datasheet Preview — Official preview page of the **BT136S-600D** 4Q Triac datasheet (WeEn).

Datasheet Details

Part number	BT136S-600D
Manufacturer	WeEn
File Size	254.92 KB
Description	4Q Triac
Datasheet	BT136S-600D-WeEn.pdf
Additional preview pages of the BT136S-600D datasheet.

BT136S-600D Product details

Description

Planar passivated very sensitive gate four quadrant triac in a SOT428 (DPAK) surface-mountable plastic package intended for use in general purpose bidirectional switching and phase control applications, where high sensitivity is required in all four quadrants.

Features

Direct triggering from low power drivers and logic ICs.
High blocking voltage capability.
Low holding current for low current loads and lowest EMI at commutation.
Planar passivated for voltage ruggedness and reliability.
Surface-mountable package.
Triggering in all four quadrants.
Very sensitive gate 3.
