WMA1R5A-R5 - 1.5T LOW NOISE LOW INPUT IMPEDANCE PRE-AMPLIFIER

Product Overview

📥 Download Datasheet

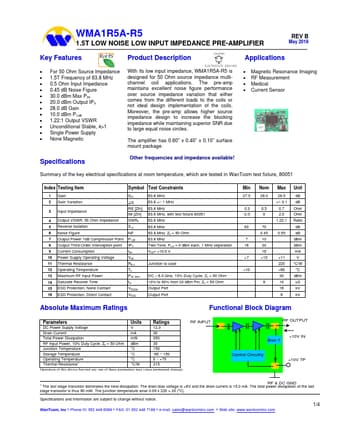

Datasheet preview – WMA1R5A-R5

Datasheet Details

Part number WMA1R5A-R5
Manufacturer WanTcom
File Size 131.32 KB
Description 1.5T LOW NOISE LOW INPUT IMPEDANCE PRE-AMPLIFIER
Datasheet download datasheet WMA1R5A-R5 Datasheet
Additional preview pages of the WMA1R5A-R5 datasheet.

Product details

Description

Applications For 50 Ohm Source Impedance With its low input impedance, WMA1R5A-R5 is 1.5T Frequency of 63.8 MHz designed for 50 Ohm source impedance multi- 0.5 Ohm Input Impedance 0.45 dB Noise Figure 30.0 dBm Max PIN 20.0 dBm Output IP3 28.0 dB Gain 10.0 dBm P1dB 1.22:1 Output VSWR Unconditional Stable, k>1 Single Power Supply channel coil applications.The pre-amp maintains excellent noise figure performance over source im
