WMA123.5A - 3T LOW NOISE LOW INPUT IMPEDANCE PRE-AMPLIFIER

Product Overview

📥 Download Datasheet

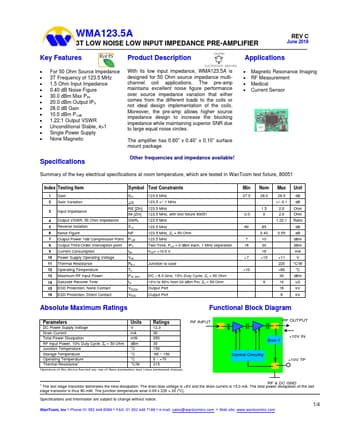

Datasheet preview – WMA123.5A

Datasheet Details

Part number WMA123.5A
Manufacturer WanTcom
File Size 136.17 KB
Description 3T LOW NOISE LOW INPUT IMPEDANCE PRE-AMPLIFIER
Datasheet download datasheet WMA123.5A Datasheet
Additional preview pages of the WMA123.5A datasheet.

Product details

Description

Applications For 50 Ohm Source Impedance With its low input impedance, WMA123.5A is 3T Frequency of 123.5 MHz designed for 50 Ohm source impedance multi- 1.5 Ohm Input Impedance 0.40 dB Noise Figure 30.0 dBm Max PIN 20.0 dBm Output IP3 28.0 dB Gain 10.0 dBm P1dB 1.22:1 Output VSWR Unconditional Stable, k>1 Single Power Supply channel coil applications.The pre-amp maintains excellent noise figure performance over source impe

Features
