SB1200, SB1150-WON 1.0A HIGH VOLTAGE SCHOTTKY BARRIER DIODE

SB1200 Description

® WON-TOP ELECTRONICS SB1150 * SB1200 1.0A HIGH VOLTAGE SCHOTTKY BARRIER DIODE Pb .

SB1200 Features

* Schottky Barrier Chip
* Guard Ring for Transient and ESD Protection
* Surge Overload Rating to 30A Peak
* Low Power Loss, High Efficiency
* Ideally Suited for Use in High Frequency SMPS, Inverters and As Free Wheeling Diodes ABA Mechanical Data
* Case: DO-41, Molded Plast

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: SB1200, SB1150-WON. Please refer to the document for exact specifications by model.

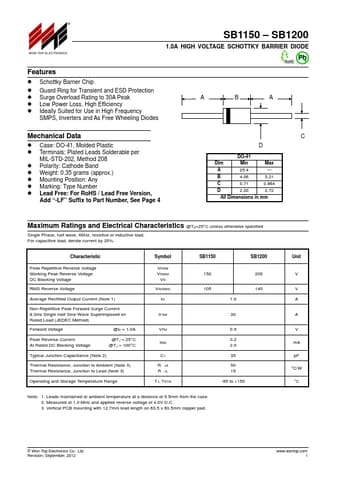

datasheet Preview Page 2 datasheet Preview Page 3
