SB120A Schottky Barrier Rectifier

SB120A Description

www.DataSheet.co.kr Not for New Design - End of Life - Last Available Purchase Date is 31-May-2011 SB120A thru SB160A Vishay General Semiconductor .

SB120A Features

* Guardring for overvoltage protection
* Very small conduction losses
* Extremely fast switching
* Low forward voltage drop
* High frequency operation
* Solder dip 275 °C max. 10 s, per JESD 22-B106
* Compliant to RoHS Directive 2002/95/EC and

SB120A Applications

* PRIMARY CHARACTERISTICS IF(AV) VRRM IFSM VF TJ max. 1.0 A 20 V to 60 V 35 A 0.50 V, 0.70 V 125 °C, 150 °C For use in low voltage high frequency inverters, freewheeling, dc-to-dc converters, and polarity protection applications. MECHANICAL DATA Case: DO-204AL (DO-41) Molding compound meets UL 94 V-

📥 Download Datasheet

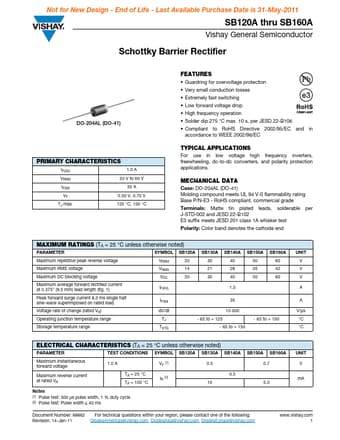

Preview of SB120A PDF
