PFW5000, PFW5000-WON - WASHER LEAD PRESS-FIT DIODE

Name: PFW5000
SKU: PFW5000-1253469

WON-TOP

The PFW5000 by WON-TOP is a WASHER LEAD PRESS-FIT DIODE. Below is the official datasheet preview.

Datasheet Details

Part number	PFW5000, PFW5000-WON
Manufacturer	WON-TOP
File Size	29.50 KB
Description	WASHER LEAD PRESS-FIT DIODE
Datasheet	PFW5000-WON-TOP.pdf
Note	This datasheet PDF includes multiple part numbers: PFW5000, PFW5000-WON. Please refer to the document for exact specifications by model.

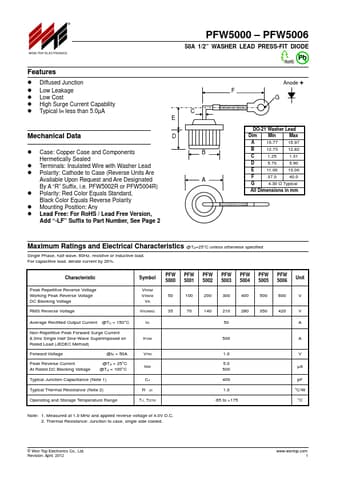

Additional preview pages of the PFW5000 datasheet.

Diffused Junction.
Low Leakage.
Low Cost.
High Surge Current Capability.
Typical IR less than 5.0µA Mechanical Data.
Case: Copper Case and Components Hermetically Sealed.
Terminals: Insulated Wire with Washer Lead.
Polarity: Cathode to Case (Reverse Units Are Available Upon Request and Are Designated By A “R” Suffix, i. e. PFW5002R or PFW5004R).
Polarity: Red Color Equals Standard, Black Color Equals Reverse Polarity.
Mounting Position: Any.
