PFW20N50E - N-Channel MOSFET

The PFW20N50E by Wing On is a N-Channel MOSFET. Below is the official datasheet preview.

Datasheet Details

Part number	PFW20N50E
Manufacturer	Wing On
File Size	0.97 MB
Description	N-Channel MOSFET
Datasheet	PFW20N50E-WingOn.pdf

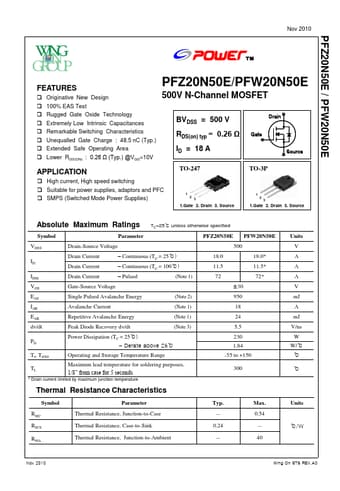

Additional preview pages of the PFW20N50E datasheet.

 Originative New Design  100% EAS Test  Rugged Gate Oxide Technology  Extremely Low Intrinsic Capacitances  Remarkable Switching Characteristics  Unequalled Gate Charge : 48.5 nC (Typ. )  Extended Safe Operating Area  Lower RDS(ON) : 0.26 Ω (Typ. ) @VGS=10V PFZ20N50E/PFW20N50E 500V N-Channel MOSFET BVDSS = 500 V RDS(on) typ = 0.26 Ω ID = 18 A Drain  Gate .
◀▲.
 Source.
