KBU800G, KBU800G-WON - 8.0A GLASS PASSIVATED SINGLE PHASE BRIDGE RECTIFIER

WON-TOP

📥 Download Datasheet

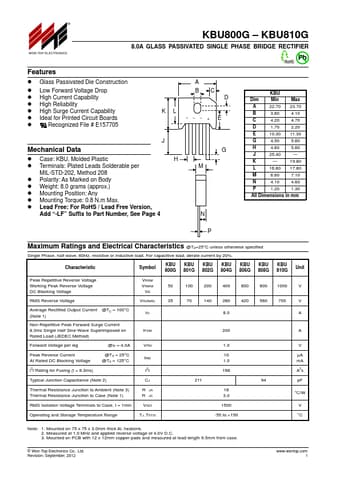

KBU800G Datasheet Preview — This datasheet PDF includes multiple part numbers: KBU800G, KBU800G-WON. Please refer to the document for exact specifications by model.

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	KBU800G, KBU800G-WON
Manufacturer	WON-TOP
File Size	40.25 KB
Description	8.0A GLASS PASSIVATED SINGLE PHASE BRIDGE RECTIFIER
Datasheet	KBU800G-WON-TOP.pdf
Note	This datasheet PDF includes multiple part numbers: KBU800G, KBU800G-WON. Please refer to the document for exact specifications by model.

KBU800G Product details

Features

Glass Passivated Die Construction.
Low Forward Voltage Drop.
High Current Capability.
High Reliability.
High Surge Current Capability.
Ideal for Printed Circuit Boards.
Recognized File # E157705 A BC D KL -~~+ E J Mechanical Data.
Case: KBU, Molded Plastic.
Terminals: Plated Leads Solderable per MIL-STD-202, Method 208.
Polarity: As Marked on Body.
Weight: 8.0 grams (approx. ).
Mounting Position: Any.
Mounting Torque: 0.8 N. m Max.
