KBU8005G - 8.0Amp Glass Passivited Bridge Rectifiers

SeCoS

📥 Download Datasheet

KBU8005G Datasheet Preview — Preview of KBU8005G PDF

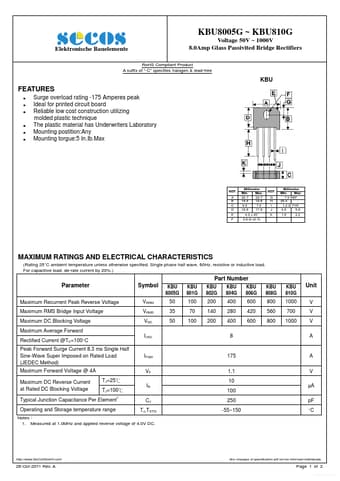

datasheet Preview Page 2

Datasheet Details

Part number	KBU8005G
Manufacturer	SeCoS
File Size	914.54 KB
Description	8.0Amp Glass Passivited Bridge Rectifiers
Datasheet	KBU8005G_SeCoS.pdf

KBU8005G Product details

Features

Surge overload rating -175 Amperes peak Ideal for printed circuit board Reliable low cost construction utilizing molded plastic technique The plastic material has Underwriters Laboratory Mounting postition:Any Mounting torgue:5 In. Ib. Max REF. A B C D E F Millimeter Min. Max. 22.7 23.7 18.8 19.8 6.5 7.0 16.8 17.8 4.0 x 45° 3.8 Ø x5.7L REF. G H I J K Millimeter Min. Max. 7.5 REF 25.4 1.2 Ø TYP. 4.6 5.6 1.8 2.2.
