KBPC5000P, KBPC5000P-WON - 50A SINGLE PHASE BRIDGE RECTIFIER

Name: KBPC5000P
SKU: KBPC5000P-1263450

WON-TOP

The KBPC5000P by WON-TOP is a 50A SINGLE PHASE BRIDGE RECTIFIER. Below is the official datasheet preview.

Datasheet Details

Part number	KBPC5000P, KBPC5000P-WON
Manufacturer	WON-TOP
File Size	43.18 KB
Description	50A SINGLE PHASE BRIDGE RECTIFIER
Datasheet	KBPC5000P-WON-TOP.pdf
Note	This datasheet PDF includes multiple part numbers: KBPC5000P, KBPC5000P-WON. Please refer to the document for exact specifications by model.

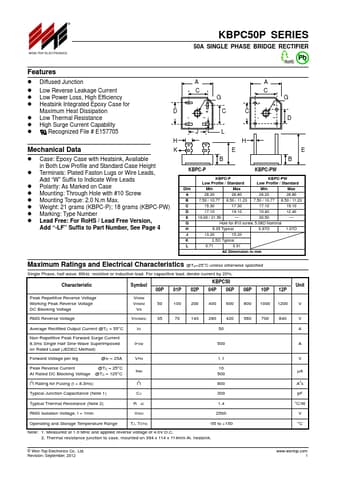

Additional preview pages of the KBPC5000P datasheet.

Diffused Junction.
Low Reverse Leakage Current.
Low Power Loss, High Efficiency.
Heatsink Integrated Epoxy Case for Maximum Heat Dissipation.
Low Thermal Resistance.
High Surge Current Capability.
Recognized File # E157705 D H Mechanical Data K.
Case: Epoxy Case with Heatsink, Available in Both Low Profile and Standard Case Height.
Terminals: Plated Faston Lugs or Wire Leads, Add “W” Suffix to Indicate Wire Leads.
Polarity: As Marked on C.
