KBPC50005T - Single Phase Silicon Bridge Rectifier

Name: KBPC50005T
SKU: KBPC50005T-1216368

GeneSiC

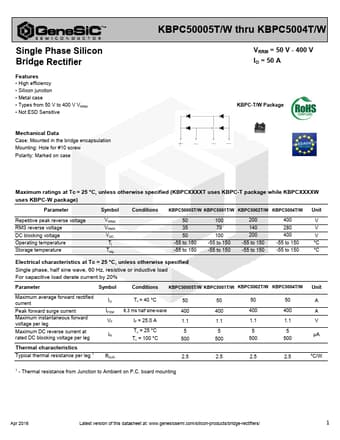

The KBPC50005T by GeneSiC is a Single Phase Silicon Bridge Rectifier. Below is the official datasheet preview.

Datasheet Details

Part number	KBPC50005T
Manufacturer	GeneSiC
File Size	320.90 KB
Description	Single Phase Silicon Bridge Rectifier
Datasheet	KBPC50005T-GeneSiC.pdf
Additional preview pages of the KBPC50005T datasheet.

High efficiency.
Silicon junction.
Metal case.
Types from 50 V to 400 V VRRM.
Not ESD Sensitive Mechanical Data Case: Mounted in the bridge encapsulation Mounting: Hole for #10 screw Polarity: Marked on case KBPC50005T/W thru KBPC5004T/W VRRM = 50 V - 400 V IO = 50 A KBPC-T/W Package Maximum ratings at Tc = 25 °C, unless otherwise specified (.
