KBPC1504P, KBPC1500P-WON - 15A SINGLE PHASE BRIDGE RECTIFIER

WON-TOP

Datasheet Details

Part number	KBPC1504P, KBPC1500P-WON
Manufacturer	WON-TOP
File Size	43.32 KB
Description	15A SINGLE PHASE BRIDGE RECTIFIER

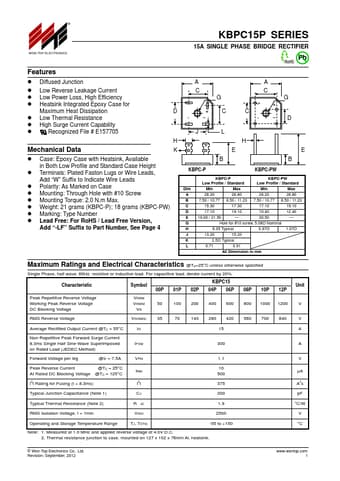

Datasheet	KBPC1500P-WON-TOP.pdf
Note	This datasheet PDF includes multiple part numbers: KBPC1504P, KBPC1500P-WON. Please refer to the document for exact specifications by model.

Diffused Junction.
Low Reverse Leakage Current.
Low Power Loss, High Efficiency.
Heatsink Integrated Epoxy Case for Maximum Heat Dissipation.
Low Thermal Resistance.
High Surge Current Capability.
Recognized File # E157705 D H Mechanical Data K.
Case: Epoxy Case with Heatsink, Available in Both Low Profile and Standard Case Height.
Terminals: Plated Faston Lugs or Wire Leads, Add “W” Suffix to Indicate Wire Leads.
Polarity: As Marked on C.
