KBPC1504S, KBPC1500S-WON - 15A SINGLE PHASE BRIDGE RECTIFIER

WON-TOP

The KBPC1504S by WON-TOP is a 15A SINGLE PHASE BRIDGE RECTIFIER. Below is the official datasheet preview.

📥 Download Datasheet

KBPC1504S 15A SINGLE PHASE BRIDGE RECTIFIER by WON-TOP - Datasheet Preview — Official preview page of the KBPC1504S 15A SINGLE PHASE BRIDGE RECTIFIER datasheet (WON-TOP).

Datasheet Details

Part number	KBPC1504S, KBPC1500S-WON
Manufacturer	WON-TOP
File Size	39.97 KB
Description	15A SINGLE PHASE BRIDGE RECTIFIER
Datasheet	KBPC1500S-WON-TOP.pdf
Note	This datasheet PDF includes multiple part numbers: KBPC1504S, KBPC1500S-WON. Please refer to the document for exact specifications by model.

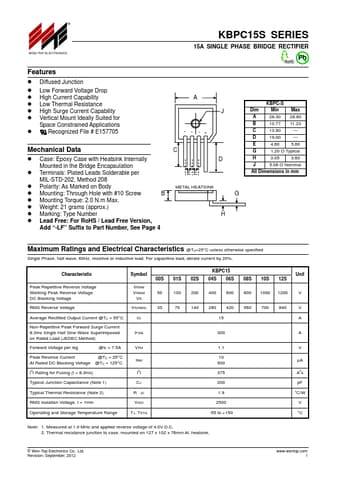

Additional preview pages of the KBPC1504S datasheet.

KBPC1504S Product details

Features

Diffused Junction.
Low Forward Voltage Drop.
High Current Capability.
Low Thermal Resistance.
High Surge Current Capability.
Vertical Mount Ideally Suited for Space Constrained.
