SESD05CD - Surface Mount TVS

WILLAS

The SESD05CD by WILLAS is a Surface Mount TVS. Below is the official datasheet preview.

📥 Download Datasheet

SESD05CD Surface Mount TVS by WILLAS - Datasheet Preview — Official preview page of the **SESD05CD** Surface Mount TVS datasheet (WILLAS).

Datasheet Details

Part number	SESD05CD
Manufacturer	WILLAS
File Size	1.04 MB
Description	Surface Mount TVS
Datasheet	SESD05CD-WILLAS.pdf

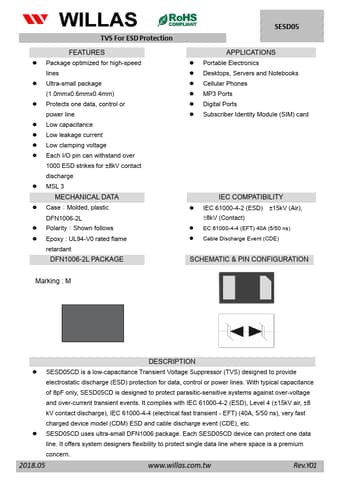

Additional preview pages of the SESD05CD datasheet.

SESD05CD Product details

Description

SESD05CD is a low-capacitance Transient Voltage Suppressor (TVS) designed to provide electrostatic discharge (ESD) protection for data, control or power lines.With typical capacitance of 8pF only, SESD05CD is designed to protect parasitic-sensitive systems against over-voltage and over-current transient events.It complies with IEC 61000-4-2 (ESD), Level 4 (±15kV air, ±8 kV contact discharge), IEC 61000-4-4 (electrical fast transient - EFT) (40A, 5/50 ns), very fast charged device m

Features

Package optimized for high-speed lines.
Ultra-small package (1.0mmx0.6mmx0.4mm).
Protects one data, control or power line.
Low capacitance.
Low leakage current.
Low clamping voltage.
Each I/O pin can withstand over 1000 ESD strikes for ±8kV contact discharge.
MSL 3.
