SESD12DW - Surface Mount TVS

Description

only.

"Typical" parameters which may be included on WILLAS data sheets and/ or specifications can and do vary in different applications and actual performance may vary over time.

WILLAS does not assume any liability arising out of the application or use of any product or circuit.

Features

  • Small Body Outline Dimensions.
  • Protects one I/O or power line.
  • Working Voltage: 12 V.
  • Low Leakage Current.
  • Response Time is Typically < 1 ns.

📥 Download Datasheet

Datasheet Details

Part number SESD12DW
Manufacturer WILLAS
File Size 894.43 KB
Description Surface Mount TVS
Datasheet download datasheet SESD12DW Datasheet

📁 Similar Datasheet

Other Datasheets by WILLAS

Full PDF Text Transcription

Click to expand full text

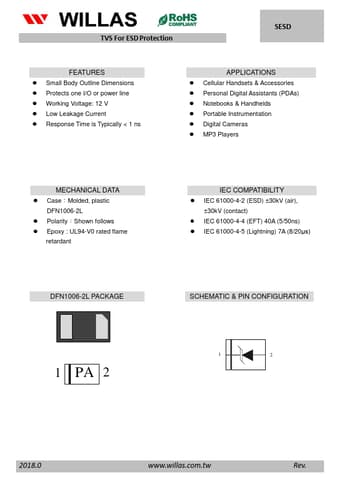

ϮϬϬt ^ƵƌĨĂĐĞDŽƵŶƚTVS For ESD Protection SESDϭϮt FEATURES  Small Body Outline Dimensions  Protects one I/O or power line  Working Voltage: 12 V  Low Leakage Current  Response Time is Typically < 1 ns APPLICATIONS  Cellular Handsets & Accessories  Personal Digital Assistants (PDAs)  Notebooks & Handhelds  Portable Instrumentation  Digital Cameras  MP3 Players MECHANICAL DATA  Case：Molded, plastic DFN1006-2L  Polarity：Shown follows  Epoxy : UL94-V0 rated flame retardant IEC COMPATIBILITY  IEC 61000-4-2 (ESD) ±30kV (air), ±30kV (contact)  IEC 61000-4-4 (EFT) 40A (5/50ns)  IEC 61000-4-5 (Lightning) 7A (8/20μs) DFN1006-2L PACKAGE SCHEMATIC & PIN CONFIGURATION 0DUNLQJ 1 PA 2 12 2018.0ϴ www.willas.com.tw Rev.
