TRW-24L01 - 2.4G ISM Transceiver

TRW-24L01 Description

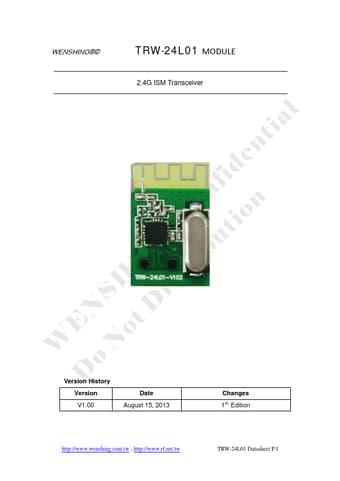

WENSHING®© TRW-24L01 MODULE 2.4G ISM Transceiver Version History Version V1.00 Date August 15, 2013 Changes 1st.Edition http://www.wenshing.com..

TRW-24L01 Features

* Worldwide 2.4GHz ISM band operation
* 250kbps, 1Mbps and 2Mbps on air datarates
* Ultra low power operation
* Programmable power:, -25, -15, -5, 0, 5 dBm
* 900nA in power down
* 26μA in standby-I
* RF CHIP Drop-in compatibility with nRF24L0

TRW-24L01 Applications

* Wireless PC Peripherals
* 3-in-1 desktop bundles
* Toys
* Sports watches and sensors
* Home and commercial automation
* Active RFID
* Mouse, keyboards and remotes
* Advanced Media center remote controls
* Game controllers

📥 Download Datasheet

Preview of TRW-24L01 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
TRW-24L01
Manufacturer
WENSHING
File Size
689.65 KB
Datasheet
TRW-24L01-WENSHING.pdf
Description
2.4G ISM Transceiver
