D4KB05 - Glass Passivated Bridge Rectifiers

WEITRON

📥 Download Datasheet

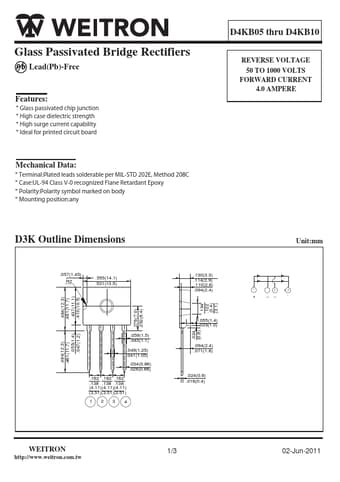

D4KB05 Datasheet Preview — Preview of D4KB05 PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	D4KB05
Manufacturer	WEITRON
File Size	114.17 KB
Description	Glass Passivated Bridge Rectifiers
Datasheet	D4KB05-WEITRON.pdf

D4KB05 Product details

Features

Glass passivated chip junction.
High case dielectric strength.
High surge current capability.
ldeal for printed circuit board Mechanical Data:.
Terminal:Plated leads solderable per MIL-STD 202E, Method 208C.
Case:UL-94 Class V-0 recognized Flane Retardant Epoxy.
Polarity:Polarity symbol marked on body.
Mounting position:any D4KB05 thru D4KB10.
