D4KB20 - 4.0A GLASS PASSIVATED SINGLE PHASE BRIDGE RECTIFIER

Product Overview

WON-TOP

📥 Download Datasheet

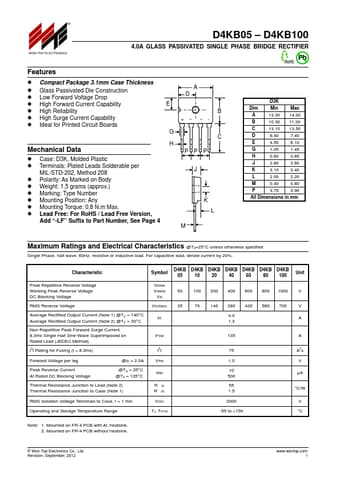

D4KB20 4.0A GLASS PASSIVATED SINGLE PHASE BRIDGE RECTIFIER by WON-TOP - Datasheet Preview — Datasheet preview – D4KB20

Datasheet Details

Part number	D4KB20
Manufacturer	WON-TOP
File Size	37.90 KB
Description	4.0A GLASS PASSIVATED SINGLE PHASE BRIDGE RECTIFIER
Datasheet	D4KB20 Datasheet
Note	This datasheet PDF includes multiple part numbers: D4KB20, D4KB05-WON. Please refer to the document for exact specifications by model.
Additional preview pages of the D4KB20 datasheet.

Product details

Features

Compact Package 3.1mm Case Thickness.
Glass Passivated Die Construction.
Low Forward Voltage Drop.
High Forward Current Capability.
High Reliability.
High Surge Current Capability.
Ideal for Printed Circuit Boards E G Mechanical Data.
Case: D3K, Molded Plastic.
Terminals: Plated Leads Solderable per MIL-STD-202, Method 208.
Polarity: As Marked on Body.
Weight: 1.5 grams (approx. ).
Marking: Type Number.
Mounting Position: Any.
