WMF07N65C4 - Super Junction Power MOSFET

WAYON

The WMF07N65C4 by WAYON is a Super Junction Power MOSFET. Below is the official datasheet preview.

📥 Download Datasheet

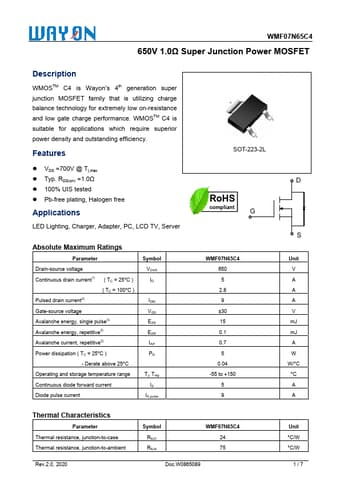

WMF07N65C4 Super Junction Power MOSFET by WAYON - Datasheet Preview — Official preview page of the **WMF07N65C4** Super Junction Power MOSFET datasheet (WAYON).

Datasheet Details

Part number	WMF07N65C4
Manufacturer	WAYON
File Size	558.96 KB
Description	Super Junction Power MOSFET
Datasheet	WMF07N65C4-WAYON.pdf
Additional preview pages of the WMF07N65C4 datasheet.

WMF07N65C4 Product details

Description

WMOSTM C4 is Wayon’s 4th generation super junction MOSFET family that is utilizing charge balance technology for extremely low on-resistance and low gate charge performance.

Features

VDS =700V @ Tj,max.
Typ. RDS(on) =1.0Ω.
100% UIS tested.
Pb-free plating, Halogen free.
