WMF07N60C2 - Super Junction Power MOSFET

WAYON

The WMF07N60C2 by WAYON is a Super Junction Power MOSFET. Below is the official datasheet preview.

📥 Download Datasheet

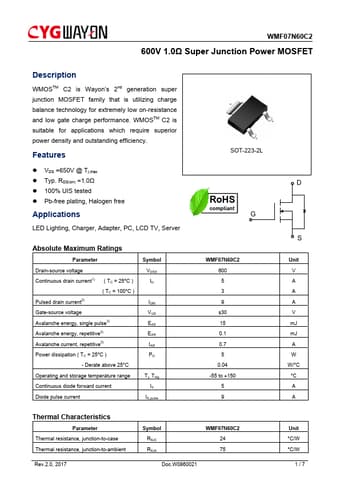

WMF07N60C2 Super Junction Power MOSFET by WAYON - Datasheet Preview — Official preview page of the **WMF07N60C2** Super Junction Power MOSFET datasheet (WAYON).

Datasheet Details

Part number	WMF07N60C2
Manufacturer	WAYON
File Size	524.94 KB
Description	Super Junction Power MOSFET
Datasheet	WMF07N60C2-WAYON.pdf
Additional preview pages of the WMF07N60C2 datasheet.

WMF07N60C2 Product details

Description

WMOSTM C2 is Wayon’s 2nd generation super junction MOSFET family that is utilizing charge balance technology for extremely low on-resistance and low gate charge performance.

Features

VDS =650V @ Tj,max.
Typ. RDS(on) =1.0Ω.
100% UIS tested.
Pb-free plating, Halogen free.
