Datasheet Details
| Part number | VM3008 |
|---|---|
| Manufacturer | Viva Electronics |
| File Size | 524.03 KB |
| Description | 30V N-Channel MOSFET |
| Datasheet |

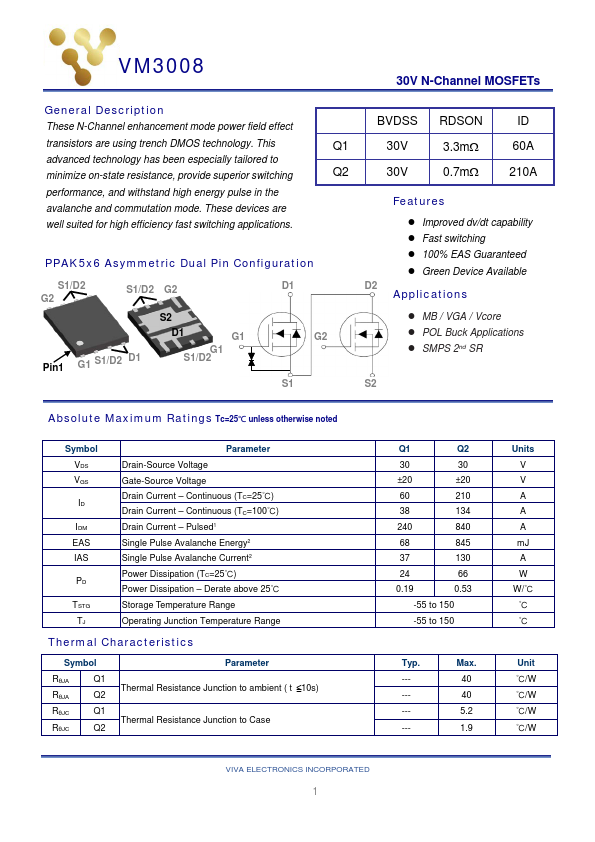

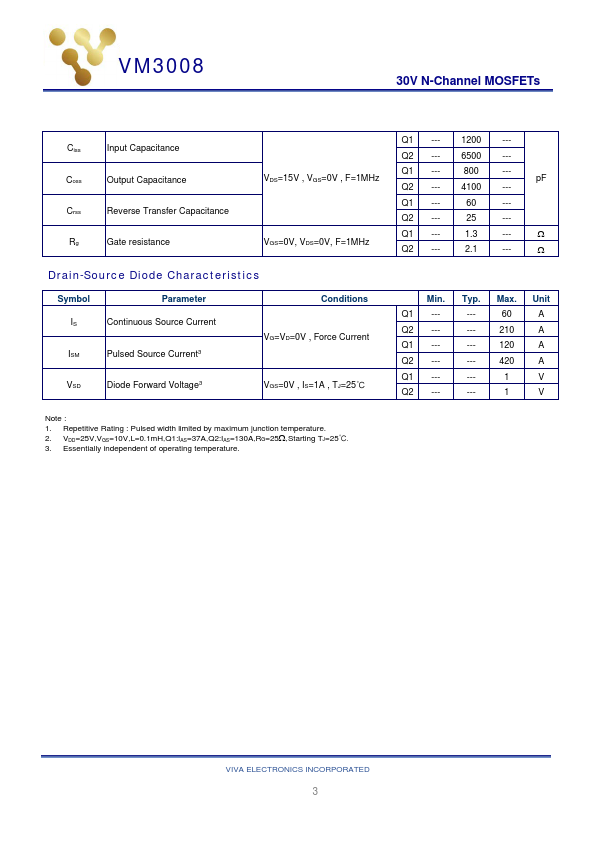

 VM3008 Datasheet
|
|
|
| Part number | VM3008 |
|---|---|
| Manufacturer | Viva Electronics |
| File Size | 524.03 KB |
| Description | 30V N-Channel MOSFET |
| Datasheet |
VM3008 Datasheet
|
|
|
|
These N-Channel enhancement mode power field effect transistors are using trench DMOS technology.This Q1 advanced technology has been especially tailored to minimize on-state resistance, provide superior switching Q2 performance, and withstand high energy pulse in the avalanche and commutation mode.These devices are well suited for high efficiency fast switching applications.PPAK5x6 Asymmetric Dual Pin Configuration S1/D2 G2 S1/D2 G2 Pin1 G1 S1/D2 D1 S2 D1 G1 G1 S1/D2 D1 G2
