Datasheet Details
| Part number | VM3003 |
|---|---|
| Manufacturer | Viva Electronics |
| File Size | 646.00 KB |
| Description | 30V Dual N-Channel MOSFET |
| Datasheet |

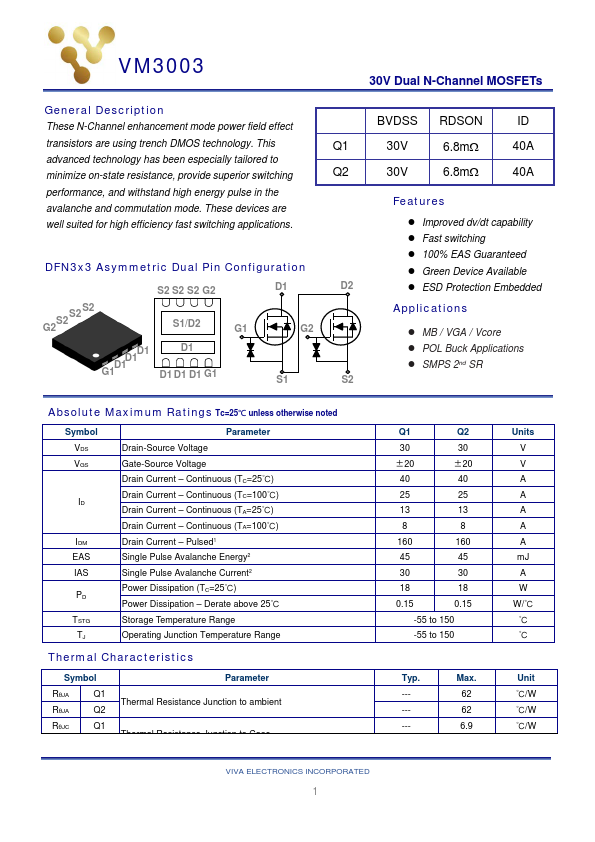

 VM3003 Datasheet
|
|
|
| Part number | VM3003 |
|---|---|
| Manufacturer | Viva Electronics |
| File Size | 646.00 KB |
| Description | 30V Dual N-Channel MOSFET |
| Datasheet |
VM3003 Datasheet
|
|
|
|
These N-Channel enhancement mode power field effect transistors are using trench DMOS technology.This Q1 advanced technology has been especially tailored to minimize on-state resistance, provide superior switching Q2 performance, and withstand high energy pulse in the avalanche and commutation mode.These devices are well suited for high efficiency fast switching applications.DFN3x3 Asymmetric Dual Pin Configuration S2 S2 G2S2 S2 S2 S2 G2 D1 D2 S1/D2 G1 G2 D1 D1 D1 G1D1 D
