VA2223 - Filterless Class D Audio Amplifier

Product Overview

📥 Download Datasheet

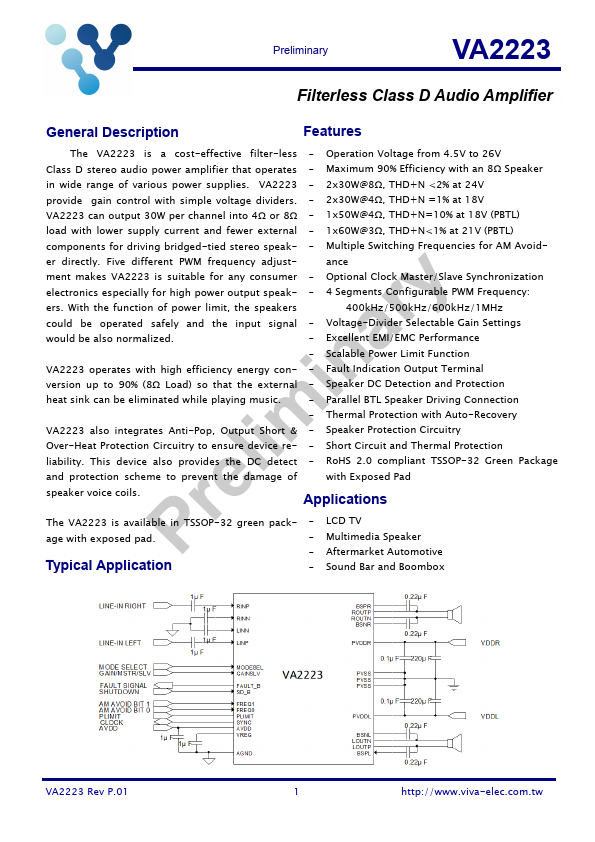

VA2223 Filterless Class D Audio Amplifier by Viva Electronics - Datasheet Preview — Datasheet preview – VA2223

Datasheet Details

Part number	VA2223
Manufacturer	Viva Electronics
File Size	908.60 KB
Description	Filterless Class D Audio Amplifier
Datasheet	VA2223 Datasheet

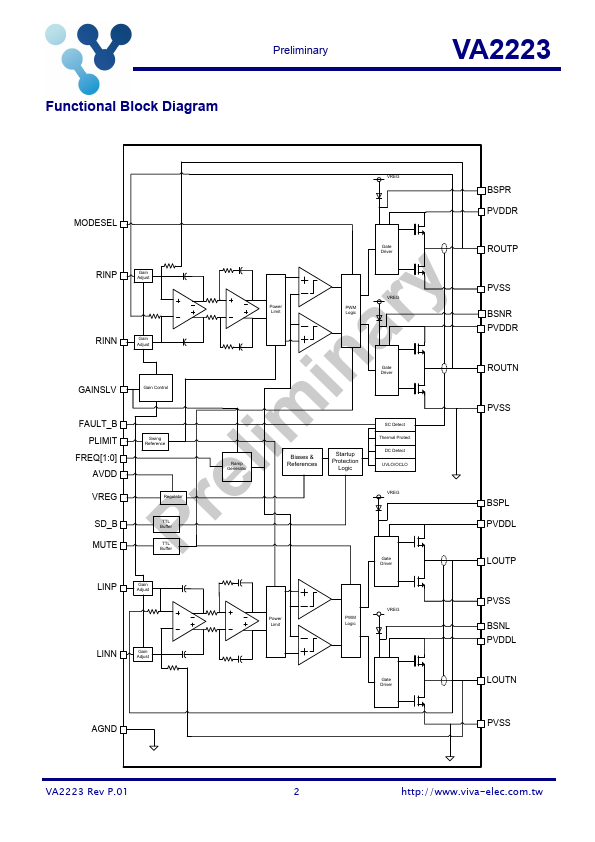

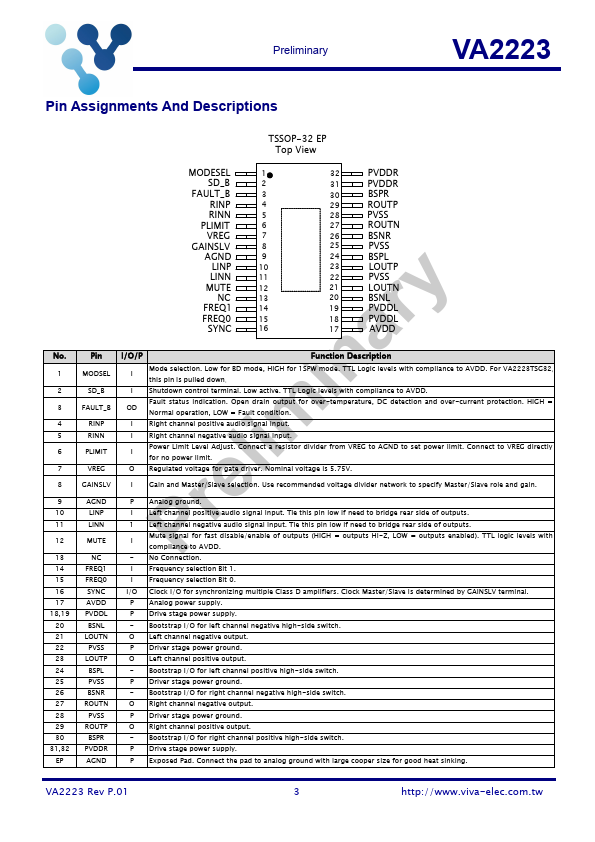

Additional preview pages of the VA2223 datasheet.

Product details

Features

Preliminary The VA2223 is a cost-effective filter-less - Operation Voltage from 4.5V to 26V Class D stereo audio power amplifier that operates - Maximum 90% Efficiency with an 8Ω Speaker in wide range of various power supplies. VA2223 - 2x30W@8Ω, THD+N.
