VA2213 - 15W Filterless Stereo Class D Audio Amplifier

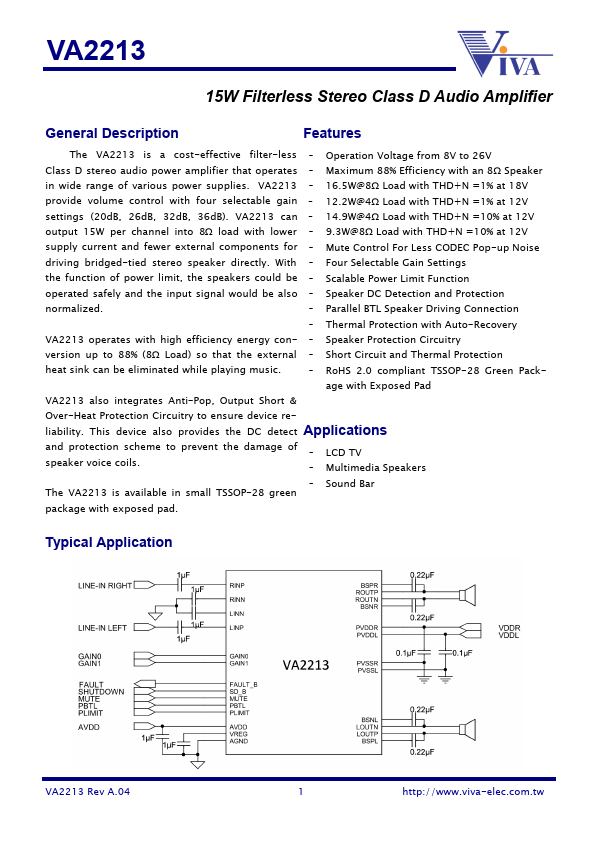

The VA2213 by Viva Electronics is a 15W Filterless Stereo Class D Audio Amplifier. Below is the official datasheet preview.

Datasheet Details

Part number	VA2213
Manufacturer	Viva Electronics
File Size	1.13 MB
Description	15W Filterless Stereo Class D Audio Amplifier
Datasheet	VA2213-VivaElectronics.pdf

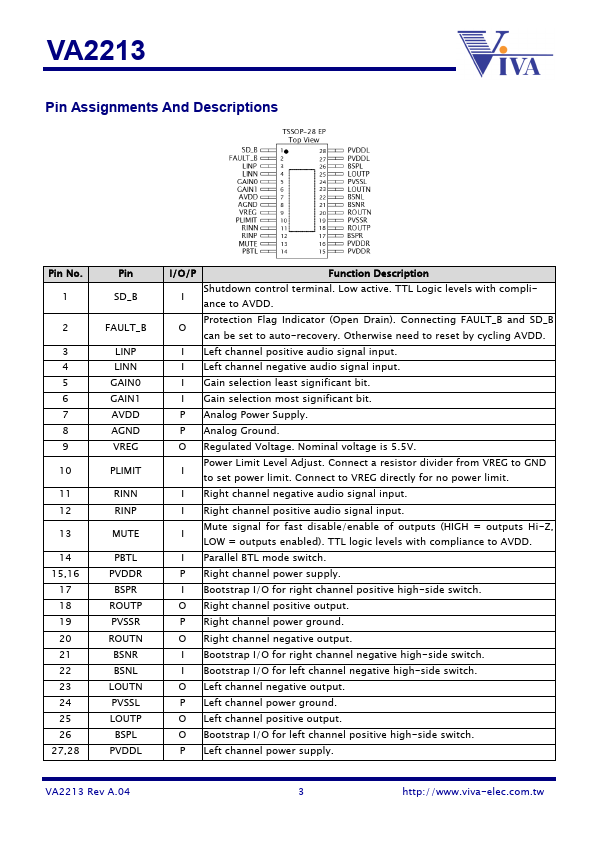

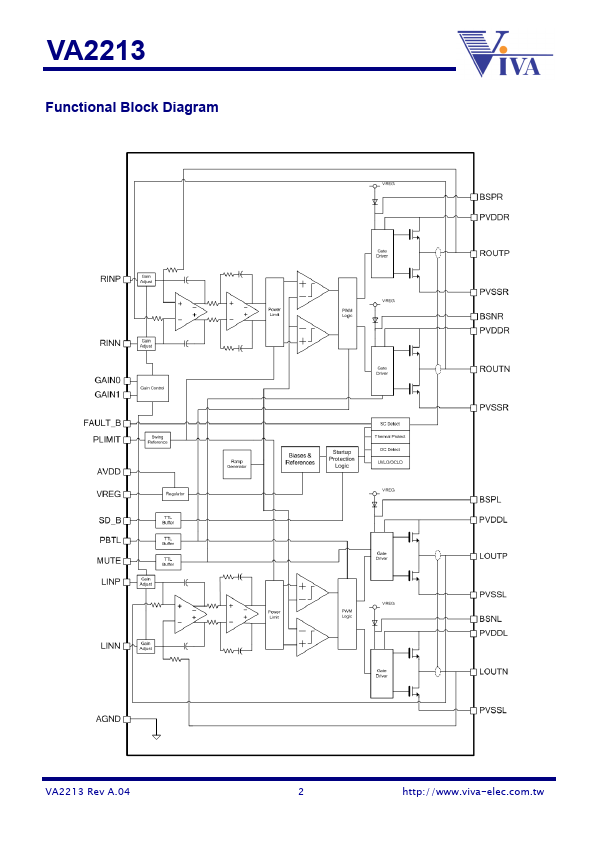

Additional preview pages of the VA2213 datasheet.

The VA2213 is a cost-effective filter-less - Operation Voltage from 8V to 26V Class D stereo audio power amplifier that operates - Maximum 88% Efficiency with an 8Ω Speaker in wide range of various power supplies. VA2213 - 16.5W@8Ω Load with THD+N =1% at 18V provide volume control with four selectable gain - 12.2W@4Ω Load with THD+N =1% at 12V settings (20dB, 26dB, 32dB, 36dB). VA2213 can - 14.9W@4Ω Load with THD+N =10% at 12V output 15W per channel into 8Ω load with lower - 9.3W@8Ω Load w.
